Valmet Fiber Furnish Analyzer

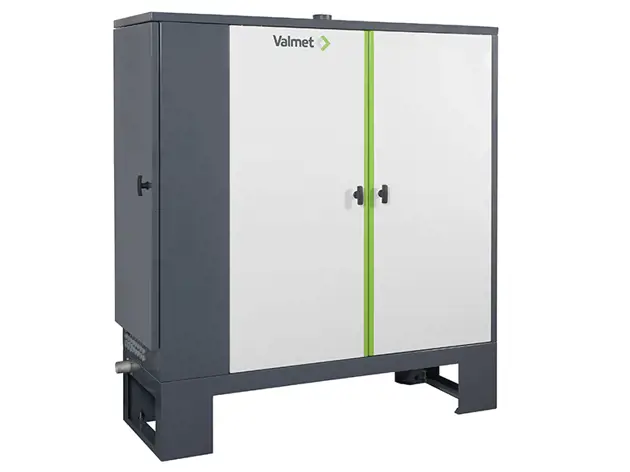

Valmet Fiber Furnish Analyzer (Valmet MAP Q) provides paper, board, and tissue makers with fast and precise online updates of key fiber and papermaking furnish properties. It represents the state of the art in online fiber analysis, building upon continuous advancements by Valmet over the past forty years.

Features of the new Valmet MAP Q

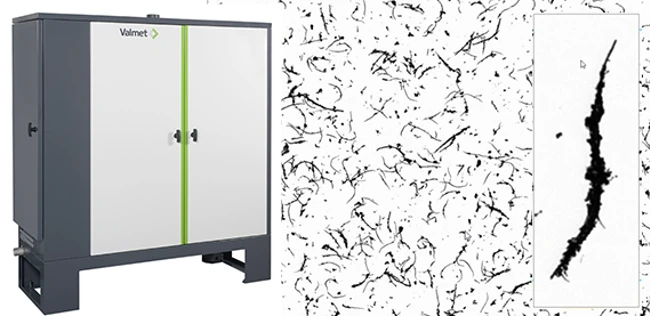

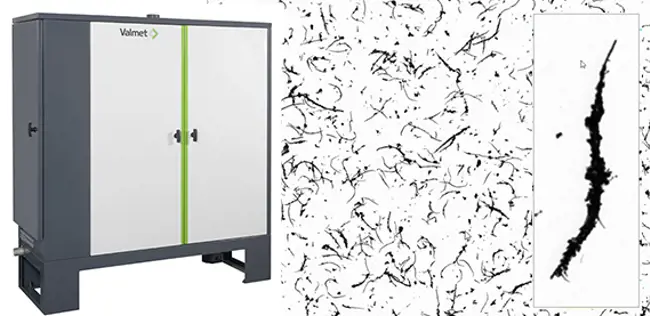

The analyzer incorporates a new fiber image technology which provides micro-scale details from fiber properties to shives and their size categories. With advanced algorithms, the device measures irregular particles including vessel segments, flocs, and other particles.

Particles measured outside the dimensions of normal fiber measurements, combined with other fiber properties measured by the analyzer, can be processed in a modeling tool that helps to predict how the fiber properties will affect pulp sheet strength properties. This next generation analyzer continues to provide online measurement of fiber dimensions including:

  • Fibrillation
  • Details of fines
  • Kink
  • Curl
  • Size distribution
  • Fractions
  • Hardwood and softwood ratios

Chemical condition module provides data from key chemical measurements illustrating how fiber surface chemistry impacts on fiber swelling.

Standardized technology

With a standardized freeness and Schopper-Riegler measurements included in the same platform, Valmet MAP Q provides pulp and paper makers with a quickly updated, comparable and complete fiber and furnish measurement solution. Rather than waiting for infrequent, time-delayed, and expensive lab tests, machine operators can act quickly and decisively and manage furnish drainage, refining levels, and fiber blend properties.

Effective working with multiple sample points

The new features of the analyzer support effective laboratory work. With multiple modules and sample points, it is possible to choose the measurements and application-specific samplers that are needed in a specific situation throughout different lines, always alternating according to the needs. It is also possible to connect the analyzer to different systems of the site with many different interface protocols.

Valmet Fiber Furnish Analyzer is an ideal tool for managing furnish blending, refining, and screening.


  • Consistent mixed furnish quality and drainage leading to improved runnability and productivity.
  • Increasing lower cost ply weight in board making by improving top/bottom ply bonding uniformity.
  • Reduced furnish costs by minimizing expensive reinforcing pulp and increasing ash content.
  • Low variability and high quality mechanical and chemical pulp with minimal shive content.
  • Increased energy efficiency and refiner segment life while maintaining the highest pulp quality.
  • Improved printing and converting performance, ensuring more satisfied customers.
  • Improved labor efficiency and operator effectiveness.

With Valmet Fiber Furnish Analyzer and optimal process control, the variability of the process can be reduced which improves uniformity but not necessarily economics. By optimizing the process after achieving better control, the economic goals, such as reducing energy consumption while maintaining final paper quality or reducing chemical usage, can be pushed forward.

Upgrades available

Valmet takes care of users. As a part of lifecycle management, partial upgrade packages are also available for existing users.

Customer success stories

Valmet provides the big Q in Quality

Valmet provides the big Q in Quality

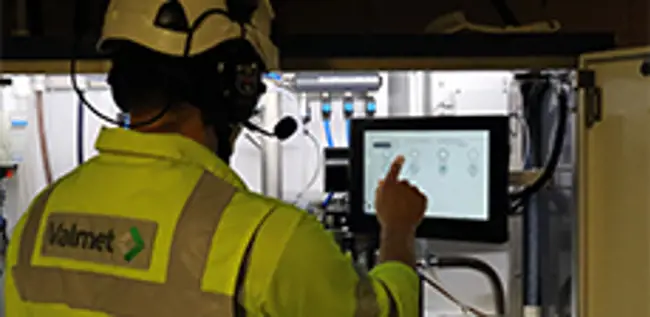

BillerudKorsnäs in Pietarsaari produces world-leading kraft and sack paper. Extensive knowledge of raw material fiber properties is essential to meet the high quality that customers expect. To this end, the mill decided to purchase the Valmet Fiber Furnish Analyzer (Valmet MAP Q).

Valmet MAP puts Jujo Thermal on the right track to improved refiner control

Valmet MAP puts Jujo Thermal on the right track to improved refiner control

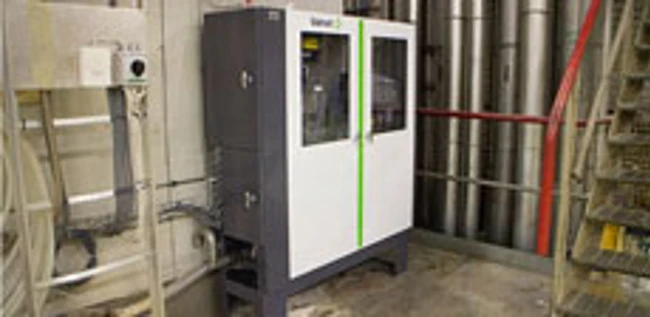

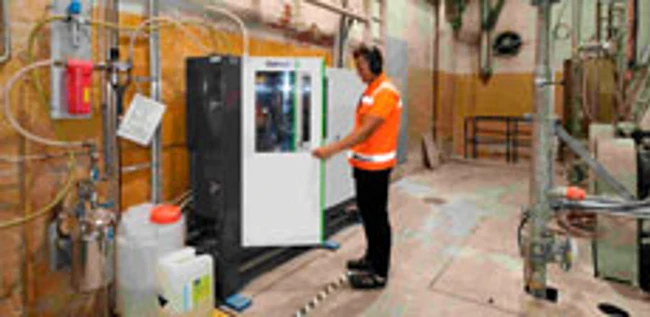

Jujo Thermal’s paper mill installed a Valmet Pulp Analyzer (Valmet MAP) on their PM 1 papermaking line to gain a better understanding of the refiner conditions and their effect on paper quality.

Breakthrough in sheet strength management

Breakthrough in sheet strength management

Valmet’s fiber microscope measurement is enabling a paradigm shift in how LC refining is controlled to achieve final sheet properties in a cost-effective way

Valmet MAP shows the route to better refiner management

Valmet MAP shows the route to better refiner management

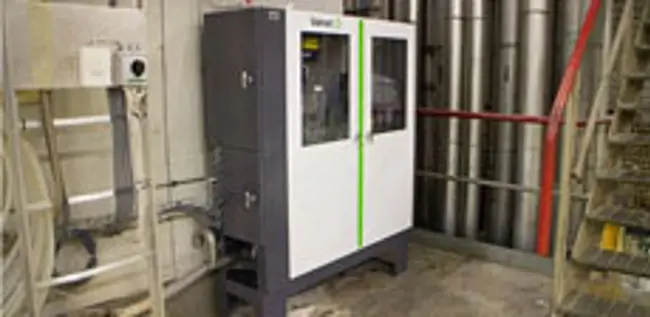

Pankaboard mill recently installed a Valmet Pulp Analyzer (Valmet MAP) to help provide better refiner control of the multiple furnishes to the board machines.
