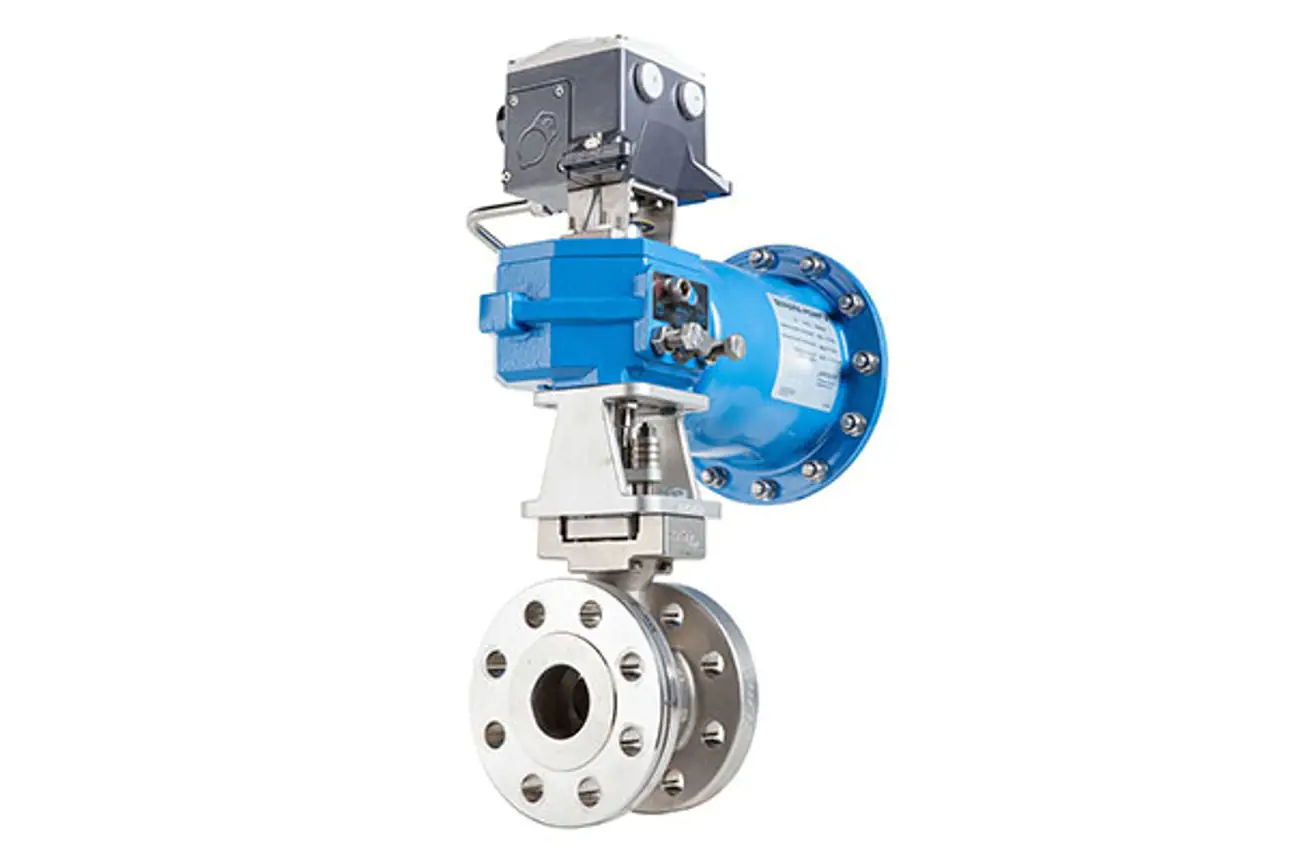

Neles™ Finetrol™ eccentric rotary plug valve is designed for liquid, gas, vapor and slurry control in general and demanding applications. Neles Finetrol is certified to SIL 3. Excellent control performance and capability to handle impure fluids makes Finetrol well suited in refining and petrochemical industry applications.
Fire safe, fugitive emission and SIL certification together with anti-blowout shaft design meet the most stringent HSE requirements
|Body pressure rating||PN 10 - 100 / ASME Class 150 - 600|
|Face to face||According to IEC 60534-3-2 / ISA 75.08.02 or IEC 60534-3-1|
|Size range||DN 25 - 300 / 1" - 12"|
|Temperature range||-200 °C … +450 °C / -328 ...+842 °F|
|Tightness||According to ANSI/FCI 70-2 class V (metal seat) and class VI (soft seat)|

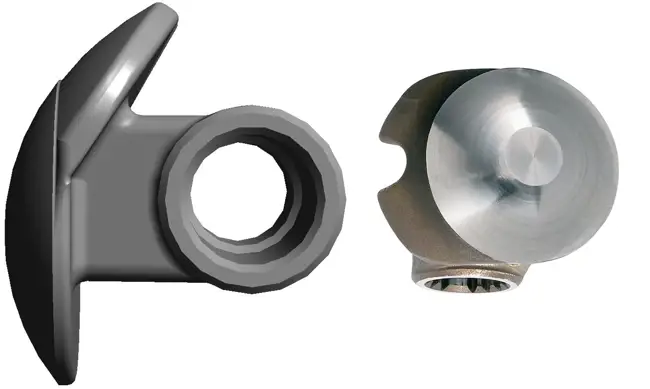

Achieving better accuracy in flow control with a unique plug shape
Dec 15, 2015
Although Finetrol belongs to the eccentric plug valve category (IEC 60534-1 Sect 18.104.22.168), it has design differences that distinguish it from other eccentric plug valves currently available on the market. One of the special design features is a balanced plug that delivers benefits when it comes to better accuracy in flow control.
Jun 20, 2019
Neles globe valves are high performance control valves designed to provide the best possible control accuracy and wide rangeability with all the inherent benefits of linear control valves. The quick-change trims and top-entry construction enable easy valve assembly and service, leading to extended operational life. Wide range of various trim designs are available from standard to low noise and anti-cavitation applications. Keeping track of the performance of the globe valves is simple with onlin...
Ensuring high uptime with Neles globe valves
Oct 13, 2016
Neles globe valves feature uncompromised safety and meet the highest environmental standards. Thanks to the innovative stem sealing solution, emissions from the valves are very low. For applications where zero emissions are a requirement, a special bellows seal solution is available. In terms of reliability and uptime our globe valves have proven their capabilities in even the most challenging process conditions.
