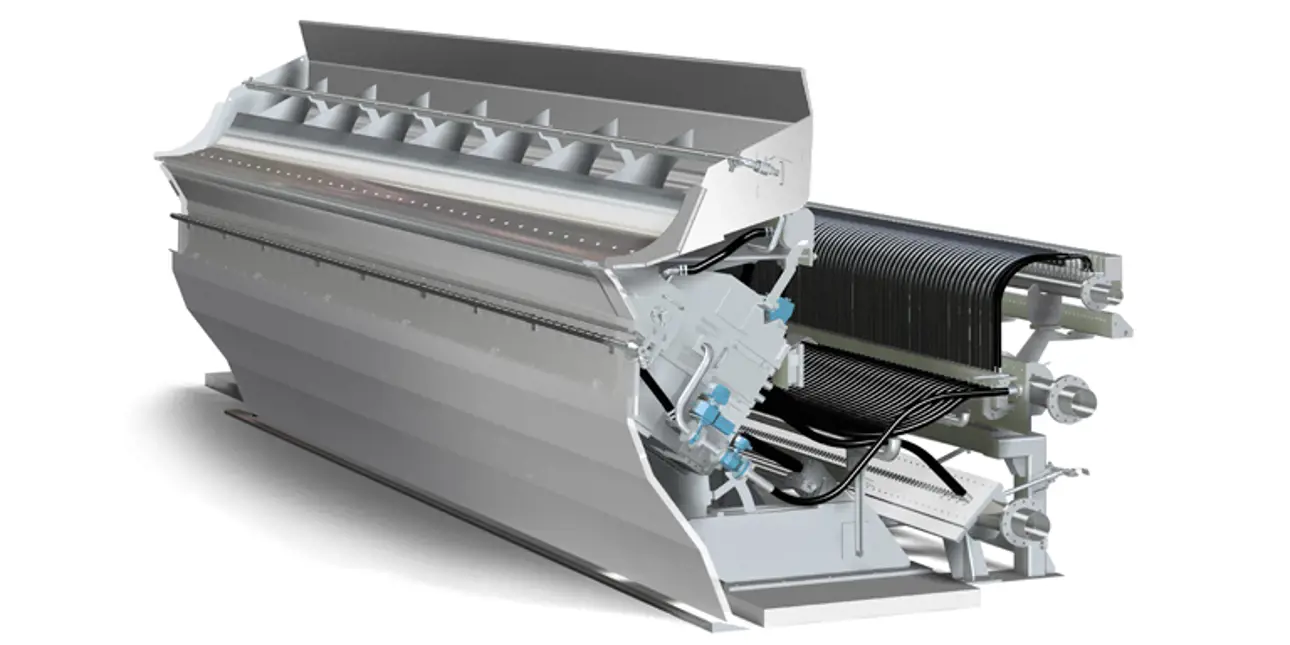

OptiFlo Layering Gap headbox

Efficient lightweight board making

The new OptiFlo headbox family brings together our unrivaled expertise and new technology, opening the door to improved quality and increased productivity in all forming applications. Valmet’s high-performance headbox is an ideal solution for single- and two-layer applications, in order to meet today’s high boardmaking demands on containerboard production.

High-performance layering gap headbox for demanding gap forming applications

The key elements of the OptiFlo Gap headbox are its completely redesigned headbox turbulence generator and a slice channel built using composite wedge technology. These innovations allow a consistent and disturbance-free slice jet. The key objectives of the OptiFlo Gap headbox are first to achieve optimal fiber suspension fluidization and then to maintain this optimal fluidization without disturbance across the forming section.

Experiences from several production machines show that homogenous slice jet quality yields excellent board properties. This gap forming headbox design maximizes the utilization of raw material strength potential, which enables the use of more cost-effective raw materials.

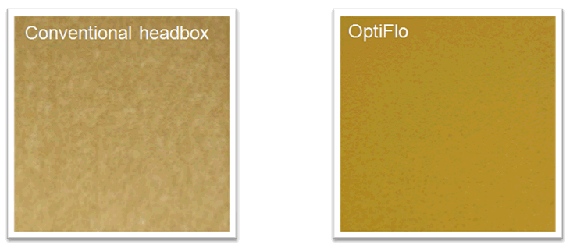

Top side view of brown (40 gsm) on grey (40 gsm) linerboard sample, total 80 gsm.

Excellent layer coverage as a result

The two-layer OptiFlo Gap headbox delivers good layer coverage. All hydraulic components of the headbox have been designed to minimize slice jet and board sheet disturbances to reach this.

Valmet’s high-performance headbox provides a robust hydraulic performance and excellent board properties with uniform basis weight and fiber orientation profiles within an extended operating window. This means increased operating performance and adaptability to varying production conditions.

OptiFlo II and OptiFlo Pro headbox applications are available under the renewed names OptiFlo Layering Gap headbox and OptiFlo Gap headbox.

Want to talk to our headbox experts?

Do you want to know more about our layering gap headbox or talk to our headbox experts? Answer few questions and our experts will contact you shortly.

Aqua layering technology brings raw material savings

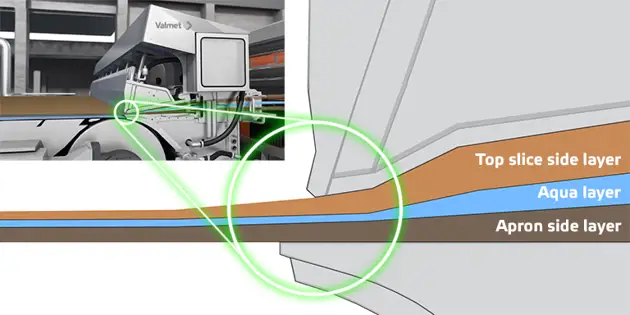

Valmet's latest innovation, aqua layering technology uses a thin water layer as a headbox wedge to stabilize layers and to form an even film while layers of stratified paper are being joined together. It prevents the mixing of stock layers and also enables the feeding of functional additives between the stock layers.

Aqua technology can be combined together with OptiFlo Layering Gap headbox. Read more about the benefits of aqua layering here.

768 x 384 Aqua layering principle.jpg

Cost efficient layering headbox concept

Having two separate headboxes is a much bigger investment compared to a layering headbox. But the cost savings do not come only from the initial headbox investment. There are possibilities for great operational cost savings as well. With two headboxes you have two wires running with all the water and chemicals. These require cleaning and changing wires, which take a lot of time. All of these create a higher operational cost compared to a layering headbox. So, it is not only about the initial headbox investment, but consider also the cost savings in energy, chemicals and consumables when comparing investing in a layering headbox versus several headboxes.

How to plan a successful rebuild?

Rebuilding a paper or board machine can improve the competitiveness of your business and your processes. But where do you start? Download our e-book to learn how to develop a winning rebuild concept, how to minimize rebuild related risks, and how to ensure smooth ramp up to full production.

Looking for headbox related services?

We provide a wide range of professional headbox maintenance and testing services to get the best out of your headbox. These services make it possible to eliminate web streakiness and jet inaccuracy, to lower the need for slice opening adjustments, and to improve dry weight profiles.

Planning a grade conversion?

The world is changing fast; the consumption of newsprint and printing paper is decreasing and the consumption of containerboards or cartonboards are increasing. An old paper machine can be updated with a grade conversion rebuild to produce more profitable products. Turn a new page for your paper machine with the help from Valmet.
