Customer case:

Solving shadow marking issue and reaching sustainability targets at SCGP Siam Kraft

Nov 23, 2021

As is typical of mills producing printed grades, such as coated duplex containerboard, Siam Kraft has been suffering from shadow marking in their PM9 press section. This was also preventing the mill from achieving their sustainability goals due to the excessive consumption of working fibers, chemicals, other raw materials and energy. Consequently, this resulted in higher operating costs and shorter roll change and maintenance intervals.

From wet pressing to sustainability in Siam Kraft board mill

The marks on the paper can be either a physical impression or a flow pattern, which can appear as a shadow or groove mark”

Yutthapon Sittiwatjana, Paper Technology Manager, Valmet

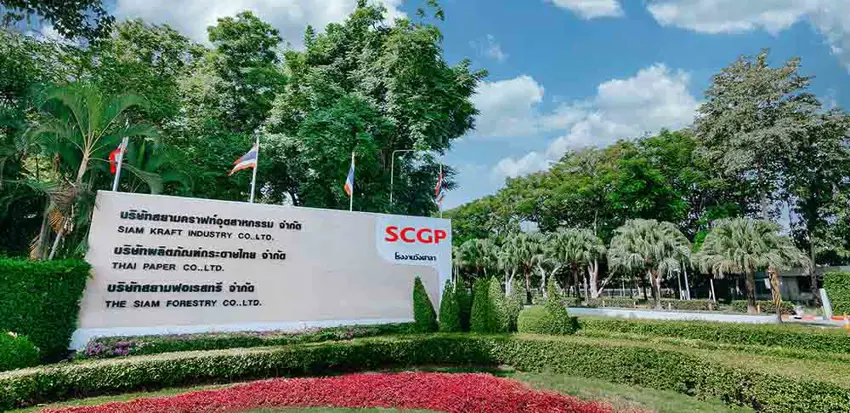

Location SCGP’s Siam Kraft board mill in Kanchanaburi Province, Thailand
Customer challenge(s) The mill wanted to solve shadow marking issue, increase roll maintenance intervals and meet their goals for sustainability, cost-effectiveness and the circular economy.

Valmet’s Laem Chabang Service team planned and executed a three-step plan:

Step 1

A water balance study was performed and it revealed that the press section water removal was adequately managed by nip and uhle box dewatering. The source of the shadow marking was identified as the suction press center roll.

Step 2

Based on Valmet Wet Pressing solutions, the roll cover of the suction press roll was redesign with Valmet Press Roll Cover PK for lower nip pressure and optimized nip uniformity.

Step 3

The vacuum system study was carried out and result indicated that the existing system had sufficient capacity to handle the process in a broad range.

  • The problem with shadow marking was solved
  • Consumption of virgin fiber reduced from 24 to 19 gsm and total fiber consumption reduced
  • Board quality improved
  • Calender roll grinding intervals increased from 30 to 40 days
  • Maintenance reliability improved

The total fiber consumption has decreased, while quality and maintenance reliability have improved
