Valmet Dual Unwind

Higher winding capacity with extremely fast parent roll change

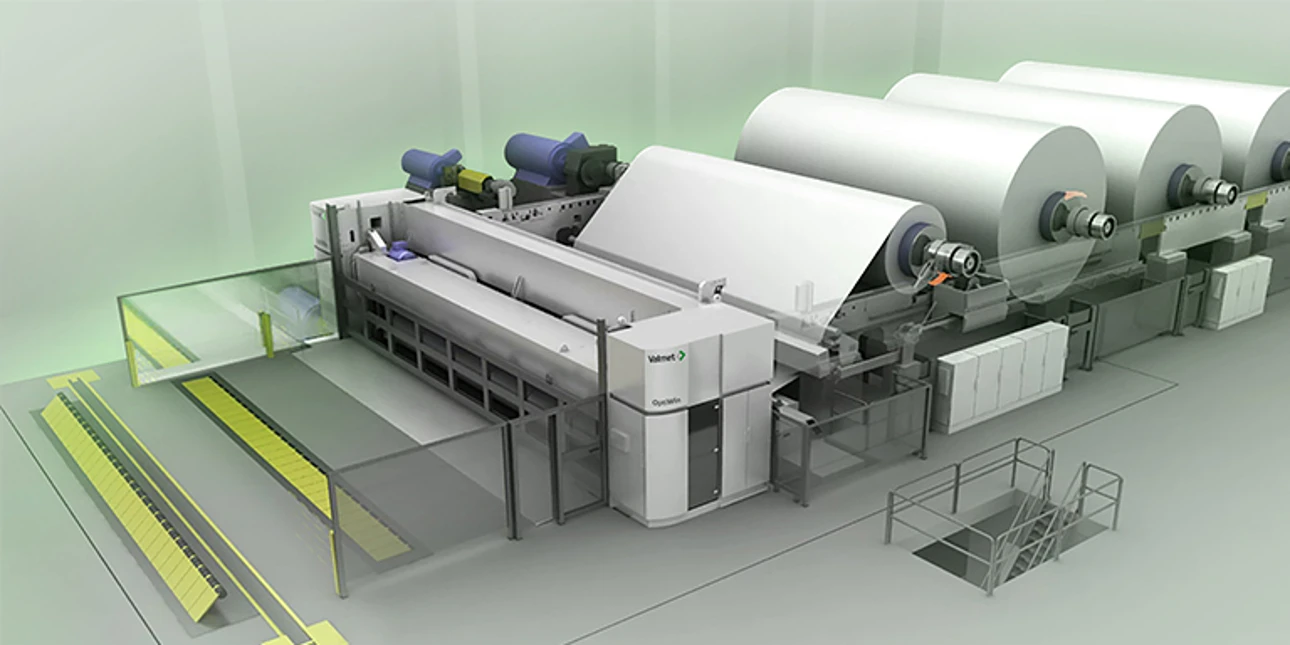

768 x 384_Dual Unwind.jpg

Why store spools in two positions? Why pause production when changing the parent roll? Why not have a winder with two unwind stands instead? Valmet Dual Unwind is an exceptionally fast way to make a parent roll change at the winder. You’ll end up with more production and higher winder capacity. Valmet has a proven technology with a solid 10-year track record with over 50 references!

New thinking at the paper machine finishing area

A decade ago, Valmet launched a revolutionary winding equipment that would significantly increase capacity. The first one was delivered to Propapier. After this first start-up, over 50 Dual Unwind solutions have been sold already to increase winding capacity. Dual Unwinding makes it possible to get rid of additional reel spool storages at the winder. There is no need to pause the production due to parent roll change as earlier. The Dual Unwind sequence is fully optimized and independent of a crane.

Dual Unwind in numbers

> 50

systems sold

< 1 min

parent roll change time

30-50 %

capacity increase

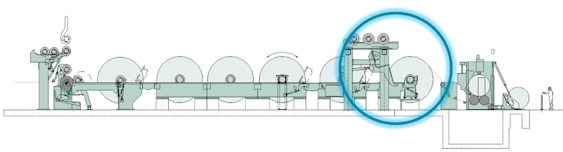

Old type of finishing area

Old type of finishing area

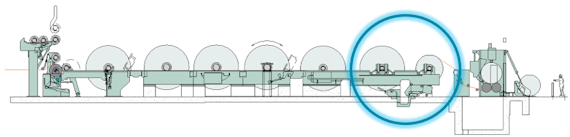

New type of finishing area with Dual Unwind

New type of finishing area with Dual Unwind

Want to talk to our winders and roll handling  experts?

Want to talk to our winders and roll handling experts?

If you wish to get further information like technical specifications, need a quotation, or wish to discuss different solutions, fill in the contact form and our experts will contact you shortly.

Contact our experts

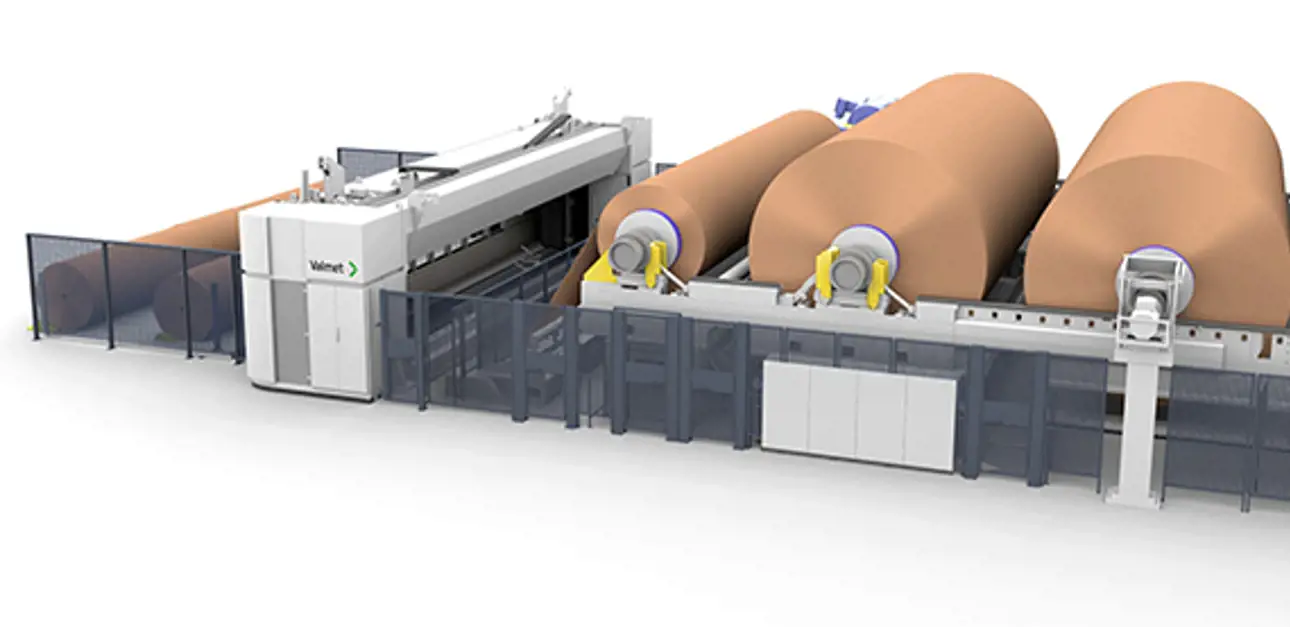

Higher winding capacity

With Dual Unwind, you’ll get:

  • One-minute parent roll change
  • Typically 30 % more capacity for winders - even over 50%!
  • For winder modernizations and new winders

With conventional parent roll change solutions, fast manual changes are 5-6 minutes. However, typical measured parent roll change times in the industry are on average some 9-12 minutes. With this in mind, a one-minute parent roll change with Dual Unwind is very fast. This alone leads to big savings with the capacity increase at the winder. Depending on the winder, the capacity gain can be substantial.

The movements of parent rolls are arranged to happen simultaneously with the set changes, which is a robust solution to ensure there are no compromises to the roll structure and quality during winding. The second unwind stand is designed only for unwinding the last set from the parent roll. This allows the primary unwind stand to receive a new, prepared parent roll during winding.

The dual unwind can be delivered with two different splicing technologies, a conventional flying splice or a butt-joint splice, BJS, which will prepare a sellable splice.

Butt-joint splicing delivers:

  • High-quality splices that run through the printing press
  • Excellent splicing quality and reliability
  • Suitable for all paper/board grades
  • Automatic tail threading from parent roll to slitter section
  • Unwinding from above and under

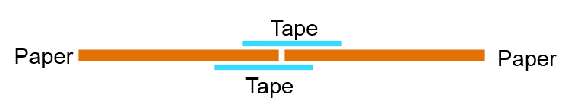

Butt-joint splicing

Butt-joint splicing

Watch video: Valmet's Dual Unwind in action at Liansheng Paper, Longhai site, BM10 producing kraft containerboard (China)

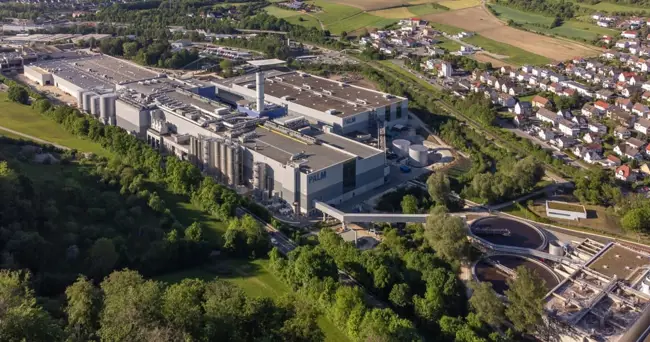

Watch the video: Valmet delivered the 1000th winder with high-tech features to Palm Aalen PM 5. Even the smallest Valmet winders benefit from this know-how!
