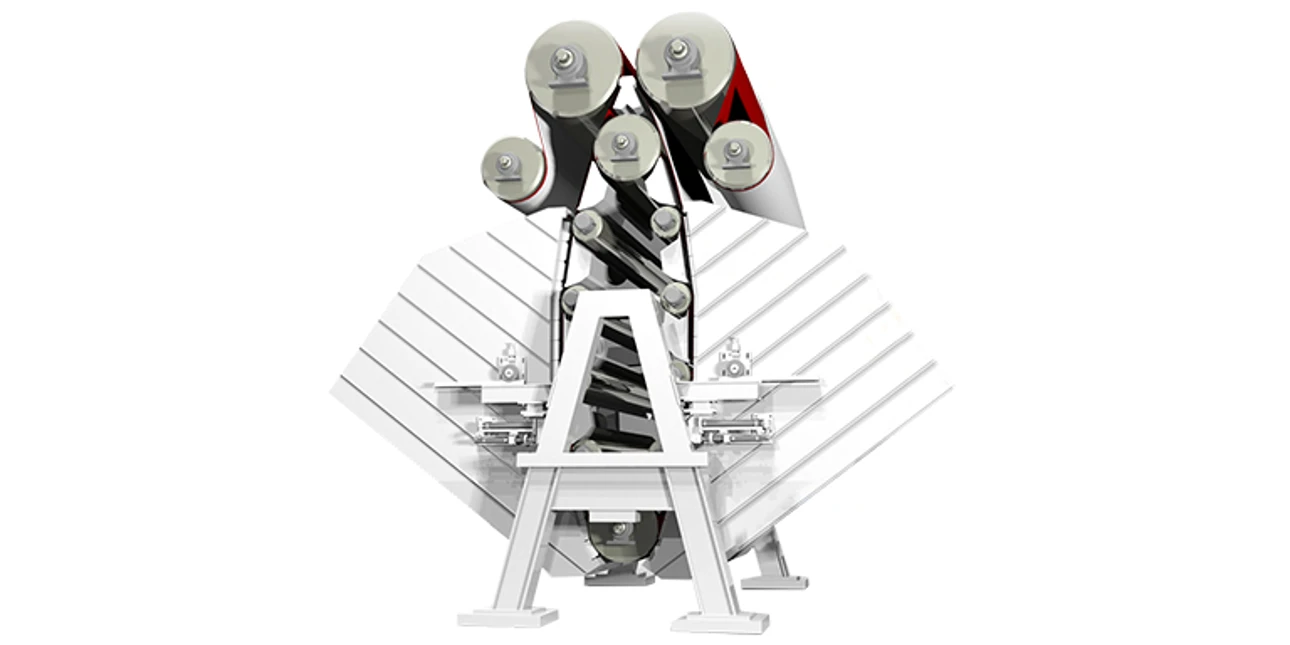

OptiDry Vertical impingement drying

Revolutionary technology for drying capacity increase in rebuilds

OptiDry Vertical is an impingement dryer, which increases drying capacity without adding machine length. It is installed under the existing dryer section. OptiDry Vertical suits all paper and board grades and can be use with any dryer section layout.

This impingement drying concept provides excellent drying efficiency and runnability especially for rebuilds. In OptiDry Vertical dryer hot air is blown directly onto the sheet. The blowing air is heated by gas burners.

The average machine production capacity increase is 15 %, which leads to a payback time estimate of 12 to 18 months. Its benefits include short installation time due to minimal modifications required to existing machine structures.

Uniform drying leads to even moisture and tension profiles. There is less sticking of fibers after the dryers as the sheet dry content is increased at the beginning of the dryer section. The release of the web from fewer cylinder surface locations increases the strain potential of the sheet.

The long impingement drying stage means enhanced drying capacity, higher speed and increased production with no need for modifications to the existing building. Installation is fast since all equipment is located in the basement or outside the machine. Due to well designed shape the dryer keeps clean from paper clumps.

More drying capacity

  • higher drying rate compared to cylinder drying
  • fast control of drying capacity
  • makes possible to use higher steam pressures at the beginning of the dryer section

Cost efficient rebuild solution

  • short shut-down time
  • no extensive changes to dryer section
  • no need to extend the machine
  • no changes to steam production

Excellent machine efficiency

  • supported web run
  • easy tail threading
  • better runnability after the dryer
  • minimal broke accumulation

OptiDry Vertical has proved its efficiency in several references. One of those is in South Korea Wolsan Haman PM 1 part of Dong Il Paper.

Improved environmental performance

"We were very happy with the project.
The drying capacity targets were achieved quickly
after start-up and this OptiDry Vertical dryer provides
a lot of flexibility for our drying energy concept
and improves our environmental performance."

Jin Doo Kim, Vice president
Dong Il Paper
