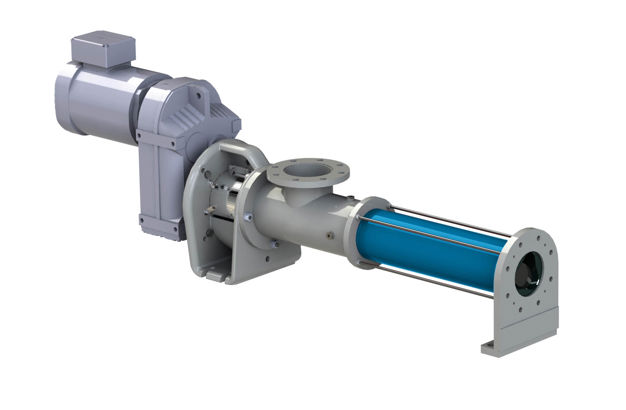

Flowrox™ progressive cavity pumps

Designed for most demanding industrial slurry and paste pumping

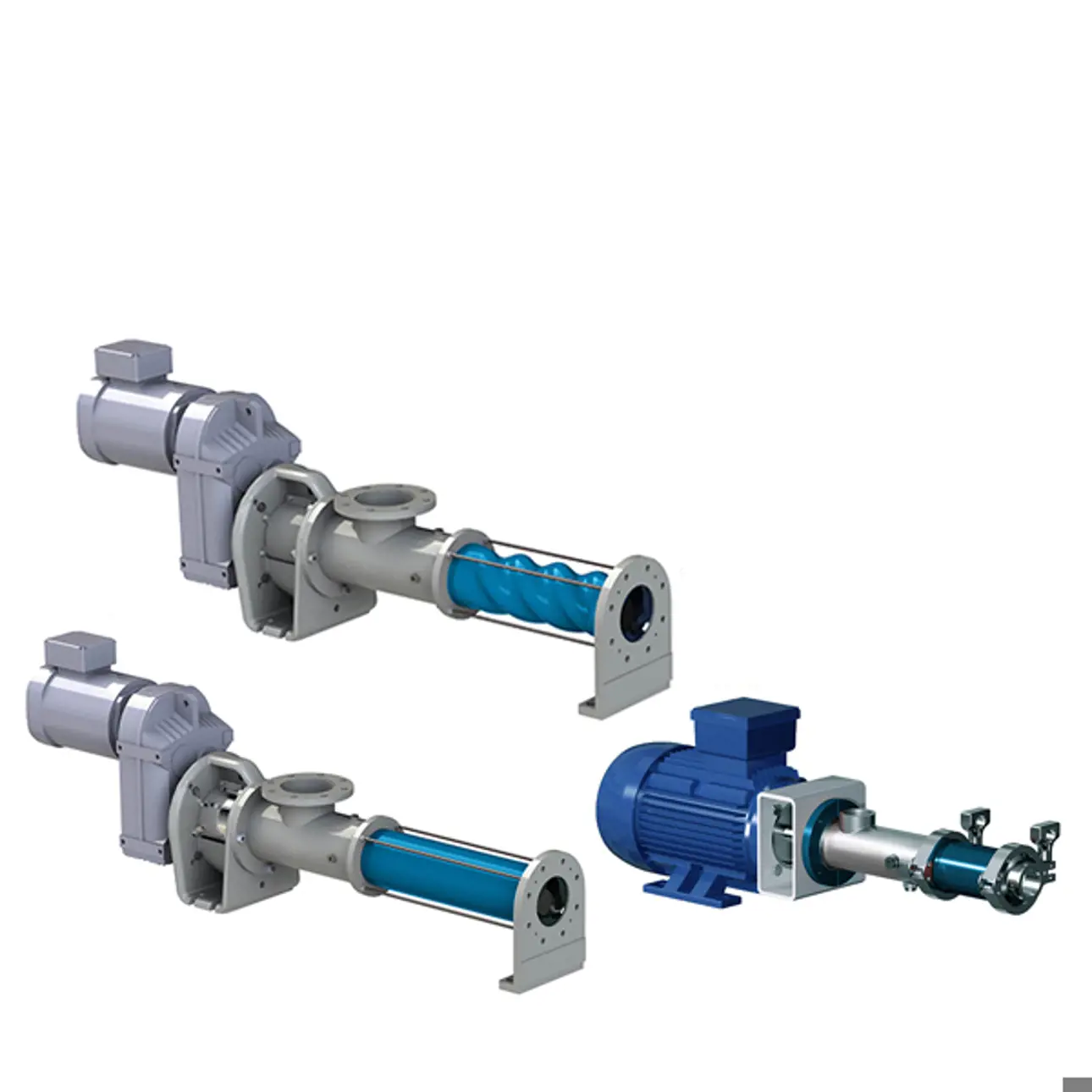

Flowrox PC pumps are ideal for challenging applications with high viscous, corrosive or sensitive media. E-series is ideal for industrial and paste pumping applications. EL-series excels in demanding wastewater and municipal waste applications, whereas D-series is designed for chemical and flocculant dosing applications.

Easy installation

Low life-cycle costs

Quick maintenance

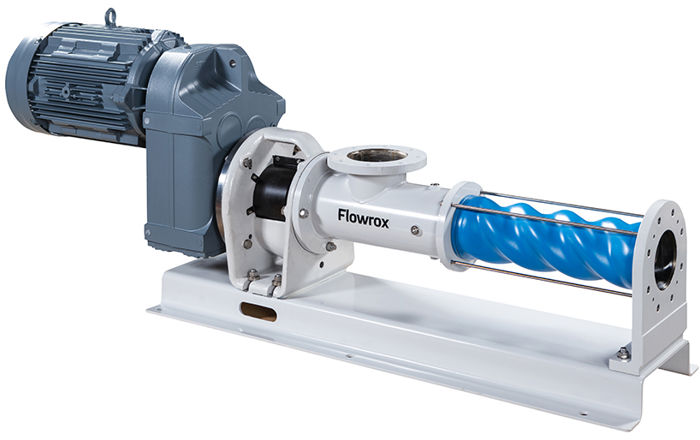

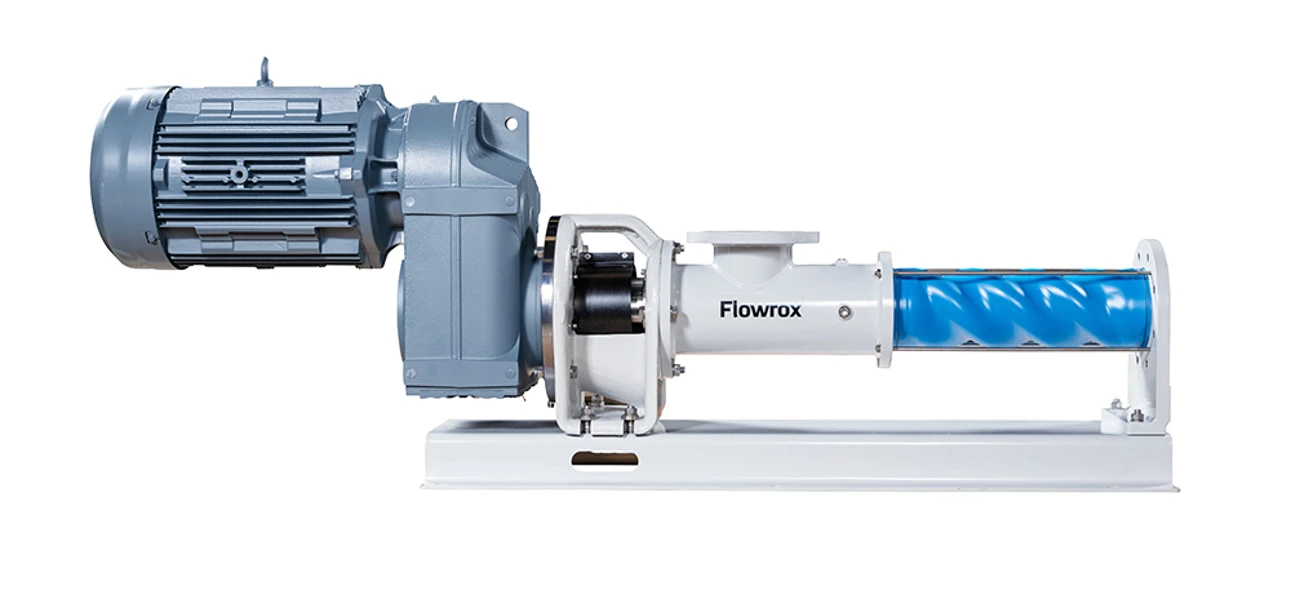

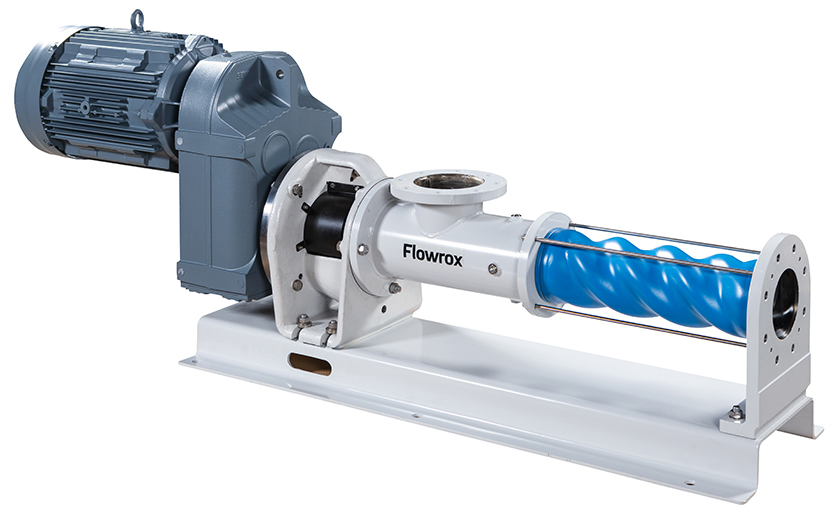

E-series PC pump: industrial slurry & paste pumping

To withstand pumping of highly viscous, corrosive and other difficult or sensitive media, E-series of Flowrox PC pump is rigid and tight. The progressive cavity pump incorporates precise 2/3-lobe elliptic rotor and spiral stator technology. Robust pumping unit enables 10 bar pressure per stage and excellent efficiency. There are eight different sizes available: E2, E4, E10, E20, E35, E70, E150 and E250, all with optional chassis.

Flowrox E-series PC pump ensures:

Easy installation, fluent operation and quick maintenance
High pumping efficiency
Low life-cycle costs
High pressure

EL-series PC pump: environmental applications

The EL-series PC pump is ideal for demanding water, wastewater and municipal waste applications. It includes maintenance hatches in suction pipe so it is easy to remove any clogged substances. The EL-series progressive cavity pump performs best in low pressure applications with high flow rates, typical for environmental applications. Four different sizes are available: EL50, EL100, EL200 and EL330, all with optional chassis.

Flowrox EL-series PC pump ensures:

Easy installation, fluent operation and quick maintenance
Clog removal is easy through maintenance hatches
Low life-cycle costs
High flow rates
Low pressure applications

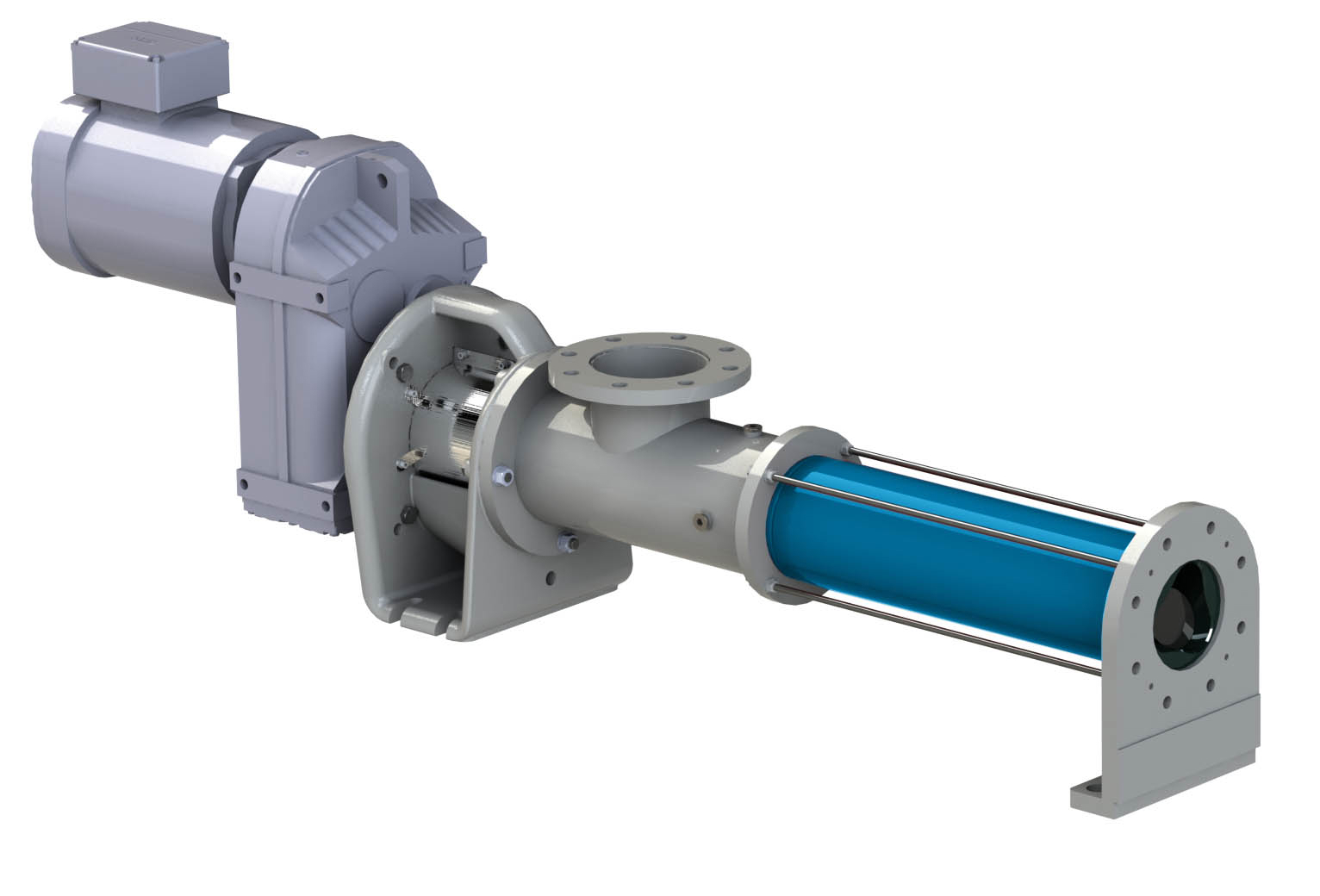

PC pump EL - Flowrox

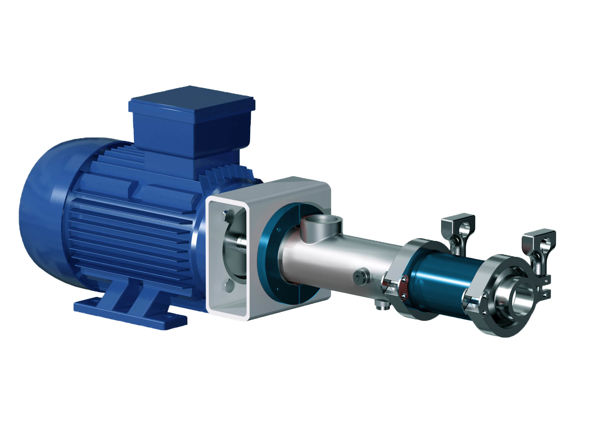

D-series PC pump: chemical applications

The Flowrox D-series progressive cavity pump is designed especially for chemical and flocculant dosing applications. The precise 1/2-lobe rotor and stator technology allows a rigid and tighter pumping unit, which enables 12 bar pressure per stage and excellent efficiency. With optimized compression of rotor and stator friction, spillover and wearing are minimized.

Flowrox D-series PC pump ensures:

Easy installation, fluent operation and quick maintenance
Rotor technology designed for industrial dosing applications
Low life-cycle costs
Even flow in dosing applications

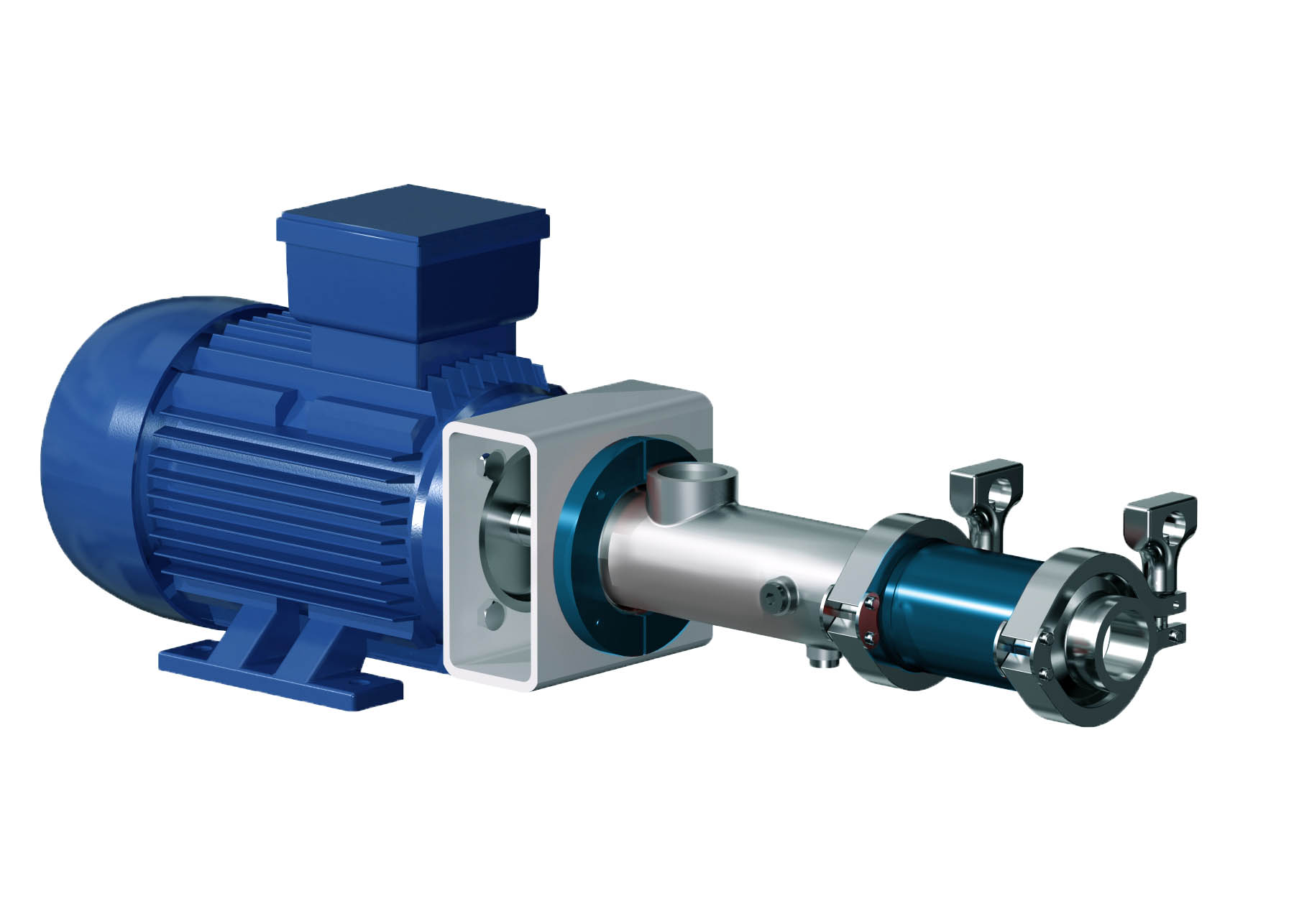

PC pump D - Flowrox

Technical specifications

Series:	D series	E series	EL series
Size range:	D0.04, D0.1, D0.25, D0.75	50 - 250 mm / 2 - 10 in	125 - 250 mm / 5 - 10 in
Flow range:	0.03 - 0.65 m3 / 1 - 23 ft3	2 - 250 m3 / 71 - 8829 ft3	50 - 330 m3 / 1766 - 11654 ft3
Pressure range:	0 - 12 bar / 0 - 174 psi	0 - 10 bar / 0 - 145 psi	0 - 6 bar / 0 - 87 psi
Temperature range:	0 - 98 °C / 32 - 208 °F	0 - 98 °C / 32 - 208 °F	0 - 98 °C / 32 - 208 °F

Downloads
Flowrox pump solutions, EN	Flowrox pump solutions, DE	Flowrox pump solutions, FR
Flowrox pump solutions, esCL	Flowrox pump solutions, RU	Flowrox pump solutions, ZH
Installation, operation and maintenance instructions for Flowrox series E and EL progressive cavity pumps, EN	Technical bulletin of Flowrox PC pumps

Reliable pumping solutions

Besides progressive cavity pumps, we also offer Flowrox peristaltic pumps. Hose pumps for transfer, dosing and metering are specifically designed for demanding processes involving abrasive, corrosive, highly viscous or crystallizing media with high solids content. Our Flowrox portfolio also includes smart flow control solutions and comprehensive after-sales services. With more than 45 years of experience in elastomer technology, Flowrox is the benchmark in heavy duty pumps and valves.

Insights

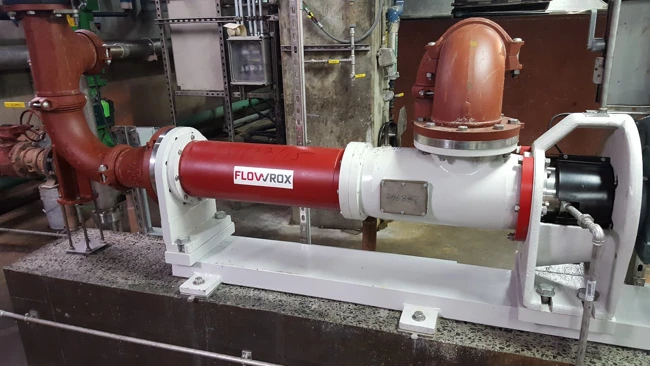

Greater flow rate with lower RPM - Increased volume of processed wastewater with Flowrox PC pumps

Mar 9, 2022

Since the installation of six Flowrox™ progressive cavity pumps in 2013 the customer has dramatically increased the volume of processed wastewater annually. Flowrox PC pumps operate at a lower RPM than competitive pump while producing a significantly greater average flow rate. The operators also appreciate how quietly the Flowrox PC pumps run.
