Valmet Visible Thermal Imaging System

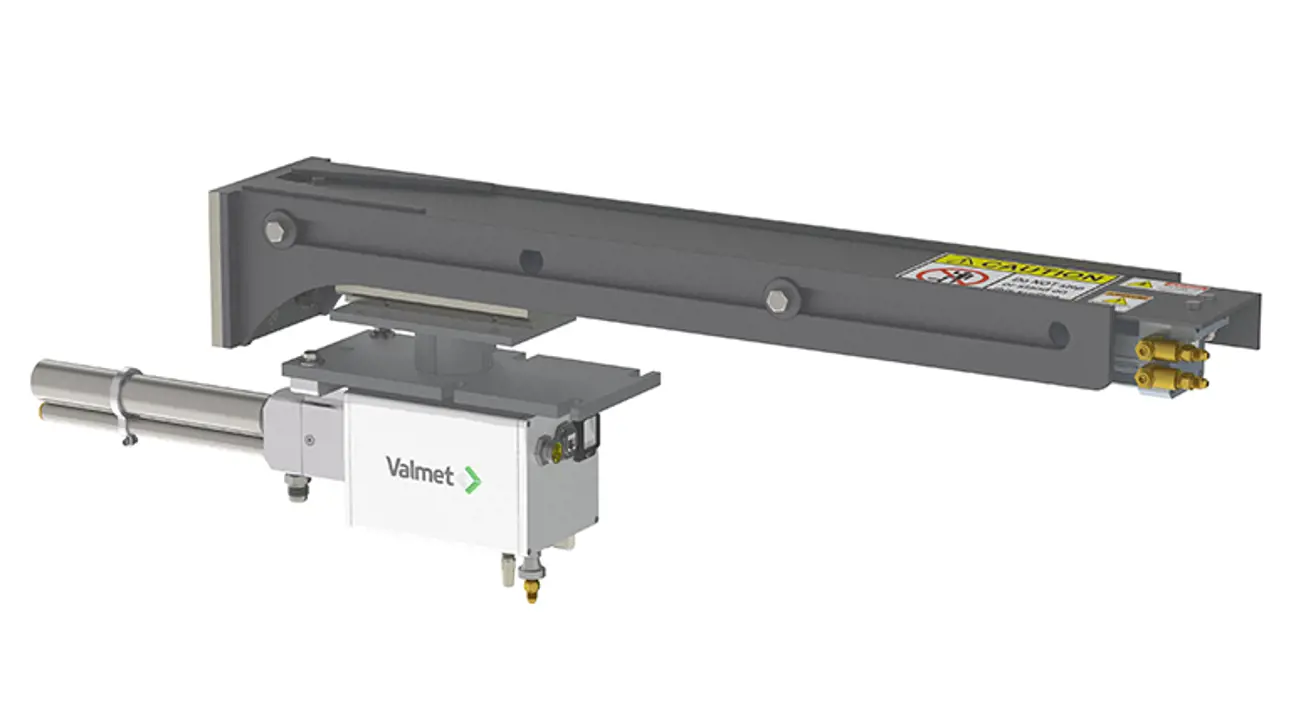

Valmet Visible Thermal Imaging System is a rugged, air-cooled, HD visible camera paired with a high-resolution thermal sensor for real-time product temperature measurements. Designed for comprehensive observation and analysis of kiln environments, the Valmet Visible Thermal Imaging System provides unparalleled image quality from start-up to full load conditions.

System benefits:

  • Improved monitoring resulting in reduced operating costs
  • Combustion optimization resulting in fuel savings

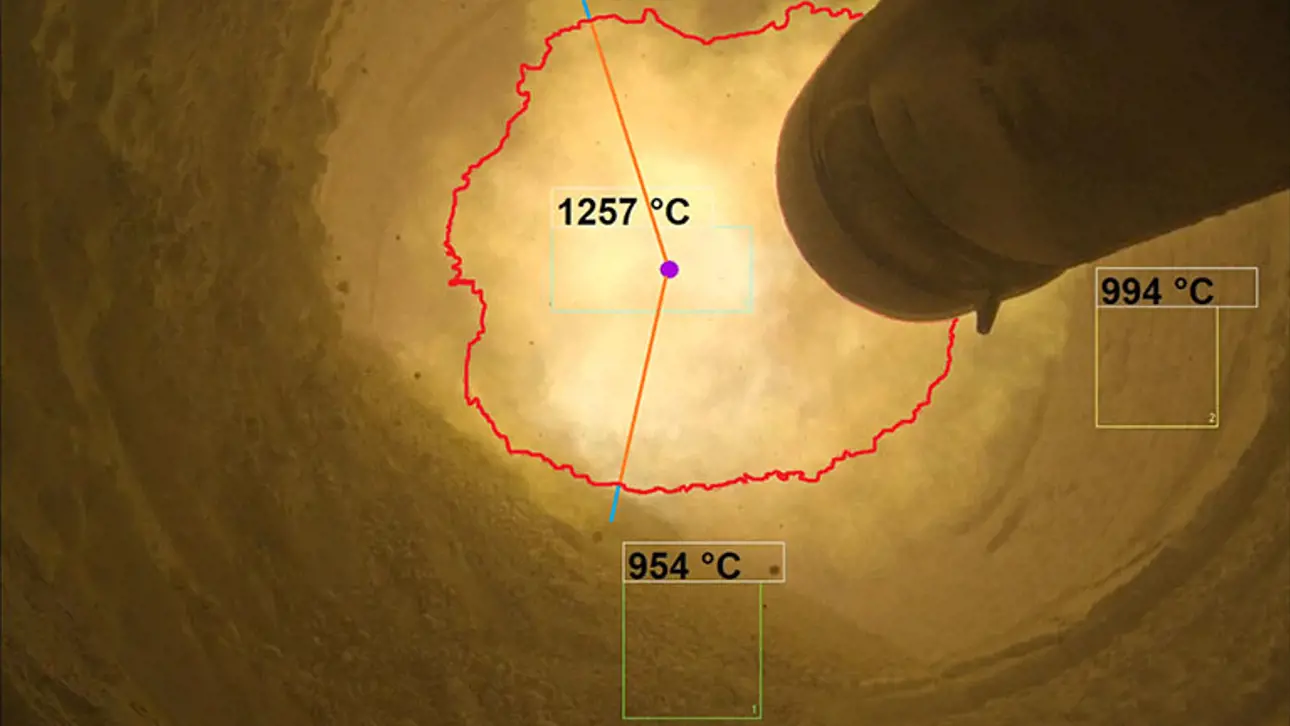

  • Allows for visual evaluation of flame shape and size
  • Reduced maintenance costs
  • Greater visibility during start-up and at full load
  • Product temperature alerts
  • Historical temperature data trends

Reliable lime kiln camera system

Valmet Visible Thermal Imaging Systems are engineered for durability and longevity inside of hot, dusty environments, providing a low maintenance solution to many complex process challenges. Digital-only data transmission improves reliability of video streams and nearly eliminates unwanted noise or image signal degradation.

Configuration flexibility

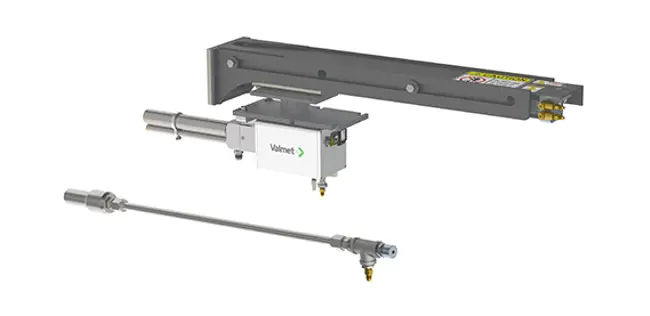

The Valmet Visible Thermal Imaging System can be configured to meet your project budget needs. A Sliding Rail mount provides a reliable, yet economical mounting solution with a small installation footprint. Additionally, the kiln camera system can be purchased with an automated retraction system, which will retract the system on loss of power or air pressure, protecting the camera unit from unintentional damage in the event of cooling air loss.

Technical specifications
Dimensions Camera enclosure 216 x 140 x 140 mm (8 1/2" x 5 1/2" x 5 1/2")
  Air filter 152 x 406 x 711 mm (6" x 16" x 28")

Camera Tube with Thermal Probe

HD Visible/Thermal 64/24 64° FOV, D 80 x 610 mm (3 1/8” x L 24”)
Lens performance  Focal Range 305 mm (12”) to infinity
Camera unit  Framerate 30 Hz
  Detector CMOS, 1920x1080 Pixels
  Display Resolution 1400x1050
  Gain/Level Automatic gain, Automatic Level
  Video format H.264, Motion jpeg
Thermal Probe Sensor Array Size 1024 Pixels
  Object Temperature Range 20°C to >1000°C (68°F to >1832°F)
  Sensor Framerate 60 Hz
Weights 24" Camera Unit with Thermal Probe 7.14 kg (15.75 lbs)
Environmental  Imaging unit/camera -18°C to 54°C (0°F to 130°F) (non-condensing)
    >54°C (130°F) may require additional cooling hardware
  Air filter system 0 to 79°C (32°F to 175°F)
Electrical  Camera and Thermal Probe Unit 85~240 VAC 50/60 Hz 0.8A SCCR: 5kA
Cooling air  Air supply Plant (service) air (Good), Instrument air (Best)
  Pressure 4.14 bar (60 psig)
  Consumption <1699 L/min (<60 SCFM) @ 5.5 bar (80 psi) inlet pressure

Visible Thermal Viewer

Valmet Visible Thermal Viewer software combines an industry-leading HD visible image with a high-resolution thermal sensor array. The software is designed to be used in conjunction with the Valmet Visible Thermal Kiln Imaging System.
