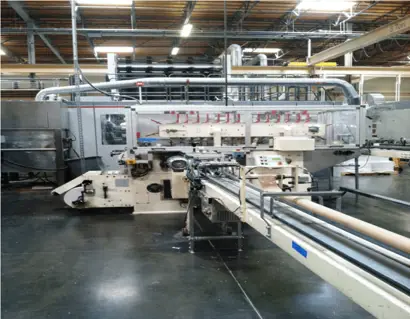

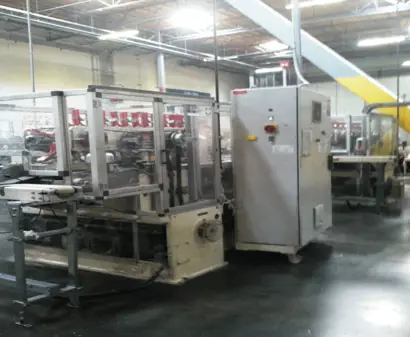

CMW111 and PAC111

Single roll wrappers

The CMW111 and PAC111 wrappers are designed primarily for the production of single-roll bathroom tissue packages. Paper wrapping with a twist and tuck system of the wrapping material or poly wrapping with a folding system and heat sealing section are both possible on these machines. The compact size of the machines make them easy to fit in most existing spaces.

General information

Model 2X CMW111 wrapper
2X PAC111 wrapper
Product year 1997 - 2002
Location Califonia, USA
Operation status In production

Technical details

Electrical platform Siemens platform
Packaging product formats

CMW111

  • Maximum production speed: up to 90 packs/min.
  • Roll dimensions:
    • Diameter: 95 ÷ 135 mm
    • Length: 90 ÷ 115 mm (standard)
  • Wrapping material:
    • Polyethylene 30 - 40 micron
    • Density from 0,870 to 0,930 Kg/dm3
    • Kraft paper 25-35 gr./sq. mt
  • Reel dimensions:
    • Core dia.: 70-76 mm
    • Outside dia.: 400 mm
    • Max. width: 500 mm

PAC111

  • Maximum production speed: up to 90 packs/min
  • Roll dimensions:
    • Diam. 95 ÷ 135 mm
    • Length 96 ÷ 115 mm (standard)
  • Wrapping material:
    • Polyethylene 30 - 40 micron
    • Density from 0,870 to 0,930 Kg/dm3
    • Kraft paper 25-35 gr./sq. Mt
  • Reel dimensions:
    • Core diameter.: 70-76 mm
    • Outside dia.: 350 mm
    • Max. width: 500 mm
