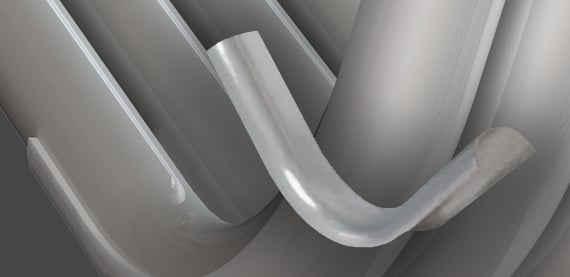

Custom curved shields

Curved shields can be manufactured to cover both outside and inside curves of tubing. Angle of wrap and degree of bend is always 180°. Complete coverage is available by overlapping shields.

Custom curved shield options

Tube Style

Covering inside of curve
Covering outside of curve

Tube Diameter 0.5" to 5.0" (Tube OD is shield ID)
Angle of Wrap

Always 180°

Gauge

Recommend 10 to 24
XML

Material

304 SS
316 SS
309 SS
310 SS
430 SS
Inconel

Degree of Bend 180° maximum
Bend Radius Measured to centerline of tube
Extensions (X/Y)

Indicate for both X & Y (3" is standard)
XML

Process information

Welding Certifications

ASME Code Stamps:

  • S: ASME Section 1
  • U: ASME Section VIII
  • R: NBIC Repair of Pressure Vessels

Inspectors CWI certified

Stainless Steel Inventory Valmet has an extensive inventory in sheet, bar, and welding materials maintained for heat resistant, corrosion resistant, and high temperature alloys. All products are purchased to proprietary customized specifications as well as normal industry standards with supporting documentation. The ability to obtain mill direct pricing and consignment inventory control has enabled our team to provide competitively priced products and control delivery of projects.
Location

Charlotte, NC
