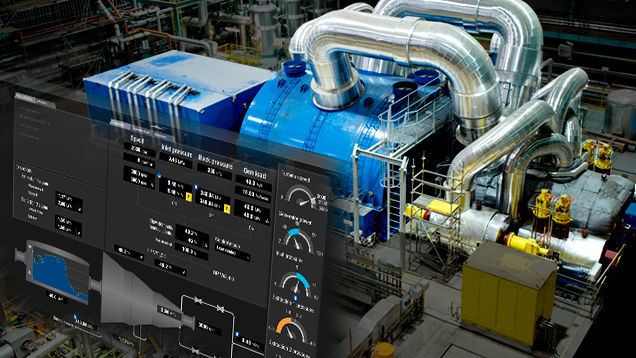

Steam turbine control system for increased performance

Simplicity and integration

The Valmet DNA Steam Turbine Automation system offers convenience and simplicity together with the thoroughness of a fully integrated system. It also provides protection and condition monitoring, along with precise turbine control.

With turbine controls, protection and scalable information management all combined in a single Valmet DNA automation package, the system gets machines back up and running quickly. The open-platform solution provides deeper insight into a steam turbine.

Easy access to all turbine controls

• Speed control
• Automatic startup using sequences that handle different startup conditions – cold, warm or hot start
• Load control
• Inlet pressure control
• Back pressure control
• Extraction pressure controls for different pressure levels
• Various limiting controllers, such as an acceleration limiter, inlet pressure limiter or backpressure limiter, according to process needs
• Primary and secondary control
• Thermal stress evaluation according to algorithms
• Control of turbine auxiliary devices
• Remote monitoring for deeper analysis

Integrated system performance

• Redundancy at all levels
• Overspeed protection
• Machine protection
• Machine condition monitoring, including analysis and diagnostics tools

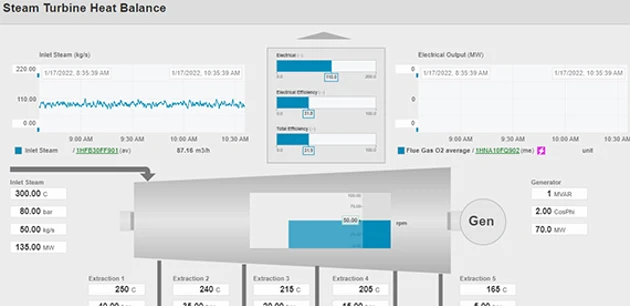

• Performance monitoring
• Information management system for data collection
• Extensive simulator for testing and training
• Remote access
