Refiner Segments - Pro safe for tissue production

Lighter, safer way to move your refining performance forward

Refiner segments Pro safe for tissue production

Optimizing low consistency refining helps tissue machines to achieve their performance and production goals. While specific refining goals may vary from mill to mill, refiner segment pattern and design can have a substantial impact on refining efficiency.

Lighter and Safer

  • 75% lighter than traditional cast refiner segments

Reduced energy consumption

Improved fiber quality

Minimized equipment downtime

Valmet Refiner Segments - Pro safe are the lighter, safer alternatives to traditional plates.  First introduced by legacy manufacturer J&L Fiber Services, Valmet is now the OEM for Pro safe refiner segments, producing them out of its Waukesha Service Center, in Waukesha, WI.

More patterns, optimum design and performance

The unique casting process used on Valmet Refiner Segments - Pro safe enables production of overhung designs that are built to drive performance. This means increased refining capacity at lower intensity with longer plate life. When compared to traditional refiner segments, Valmet customers using Valmet Refiner Segment Pro safe benefit from:

  • Higher capacity
  • Lower refining intensity
  • Longer plate life
  • Plug-resistant plate patterns

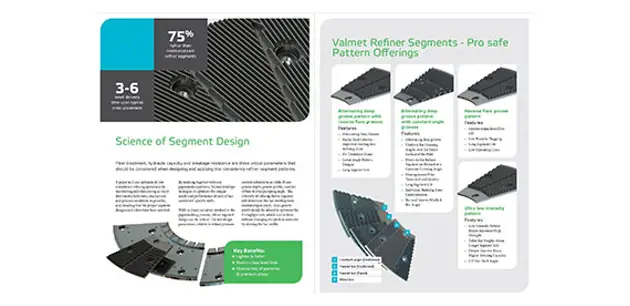

Pattern designs

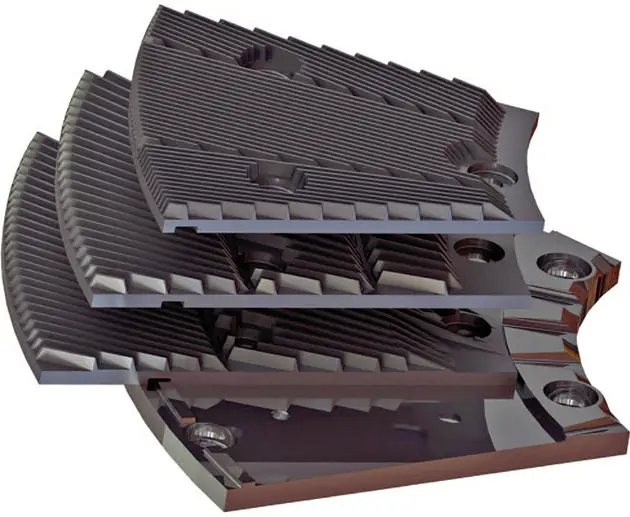

Valmet Refiner Segments - Pro safe can be fabricated in any of Valmet’s signature pattern designs.

  • Alternating Deep Groove (previously known in the industry as ProMax ReverseFlare)
  • Reverse flare groove (previously known in the industry as ReverseFlare)
  • Constant Angle Multi-Zone
  • Constant Angle
  • Ultra low intensity
  • Parallel Bar
  • Variable groove
  • Milled Bar
Case study: Replacement refiner segments improve safety and efficiency at North America mill

Case study: Replacement refiner segments improve safety and efficiency at North America mill

How do you maximize low consistency refining efficiency while also improving operator safety?

Read and download the case

The future of refining demands safety and performance

Two Valmet experts demonstrate how Pro safe segments can help achieve these goals. Let us be your co-drivers for success. Watch and learn!

Plate holder offering for Valmet Refiner Segments – Pro safe

Refiner

J&L plate and holder series

Plate holder mounting diameter

Plate holder segment Weight

Pro safe max. refining diameter

Pro safe segment weight

Standard segment weight

DD3000

42EJPH

1067 mm (42”)

9.1 kg (20 lbs)

1118 mm (44”)

4.5-5.4 kg (10-12 lbs)

16.3-20.4kg (36-45 lbs)

DD4000

42EJPH

1067 mm (42”)

9.1 kg (20 lbs)

1168 mm (46”)

4.5-5.8 kg (10-13 lbs)

16.3-20.4kg (36-45 lbs)

46EJPH

1168 mm (46”)

13.6 kg (30 lbs)

1219 mm (48”)

4.5-6.8 kg (10-15 lbs)

20.4-22.7 kg (45-50 lbs)

DD4500

42EJPH

1067 mm (42”)

9.1 kg (20 lbs)

1168 mm (46”)

4.5-5.9 kg (10-13 lbs)

16.3-20.4kg (36-45 lbs)

46EJPH

1168 mm (46”)

13.6 kg (30 lbs)

1219 mm (48”)

4.5-6.8 kg (10-15 lbs)

20.4-22.7 kg (45-50 lbs)

DD6000

42EJPH

1067 mm (42”)

9.1 kg (20 lbs)

1168 mm (46”)

4.5-5.9 kg (10-13 lbs)

16.3-20.4kg (36-45 lbs)

46EJPH

1168 mm (46”)

13.6 kg (30 lbs)

1219 mm (48”)

4.5-6.8 kg (10-15 lbs)

20.4-22.7 kg (45-50 lbs)

TwinFlo

42TFPH

1067 mm (42”)

9.1 kg (20 lbs)

1194 mm (47”)

4.5-6.4 kg (10-14 lbs)

11.3-15.9 kg (25-35 lbs)

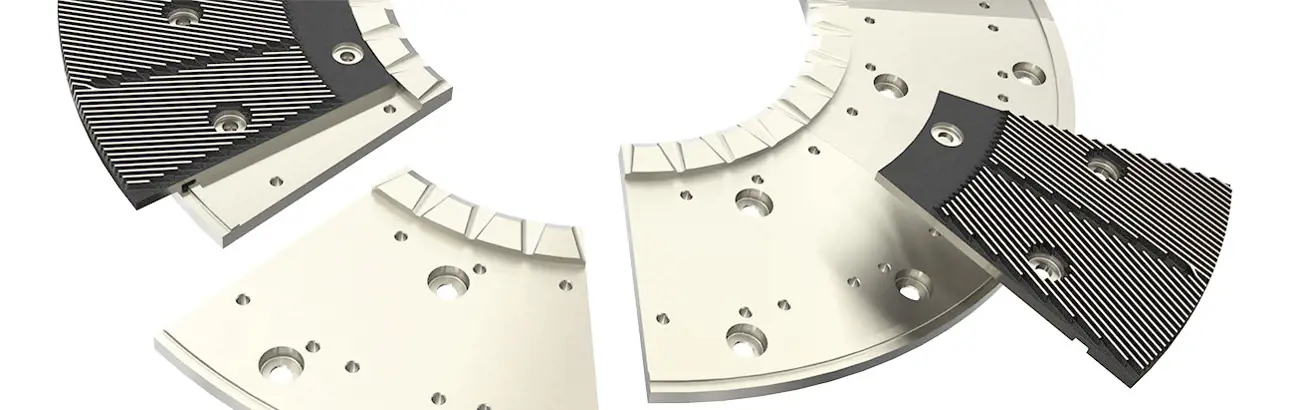

Pro safe segments are designed to fit Valmet’s customized, long-life plate holders with overhung and underhung capabilities.

Questions about refiner segments?

Questions about refiner segments?

Contact our co-drivers and take full advantage of our innovations, patents and best practices. With the combination of parts and expertise, we can together make a difference at every stage of your production process. We have increased production output and decreased total costs together by applying optimal process parts to each position.
