Stonel™ Junction module (JX)

For bus network users in the processing industries

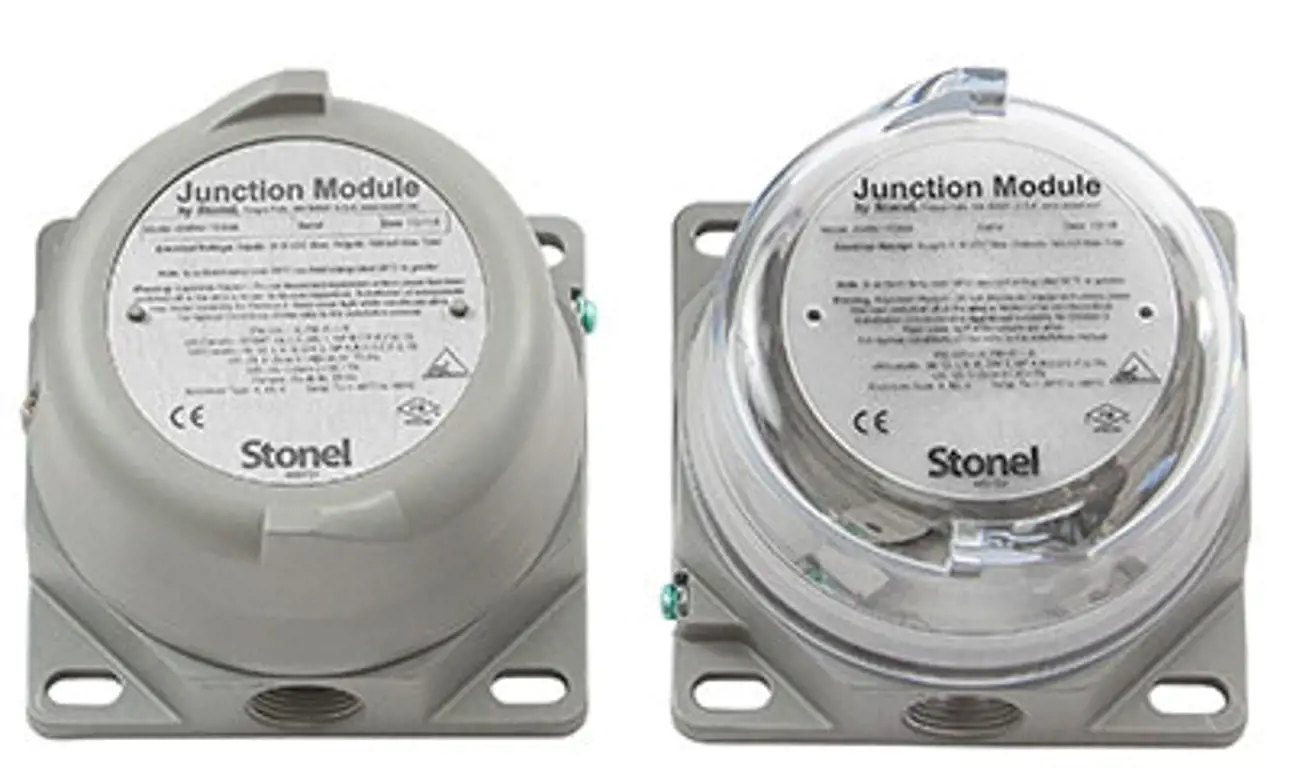

The Stonel junction module (JX) enclosure is an environmentally hardened platform which is suitable for use in the most extreme corrosive and hazardous process environments. The JX features a wide variety of bus networking capabilities for protocols used in the process industries.

Features

The explosionproof junction module is suitable for use in corrosive process environments with hard conduit or flexible wiring systems. It features external drop switching capability with explosionproof ratings for use in hazardous zone 1/Div 1 areas. Components are preinstalled in the housing.

Select from:

  • Drop connectors
  • Switched drop connectors
  • I/O modules
  • Relay modules
  • Specialty applications

Wide variety of options to meet the needs of network applications in hazardous and general purpose locations

The JX includes a full array of drop connectors, I/O modules, and other network accessory items for most common industrial fieldbus networks.  With cFMus Class I Div 1 and Class I Div 2 and ATEX/IECEX approvals, these rugged and corrosion resistant devices are an essential tool for building your network infrastructure.

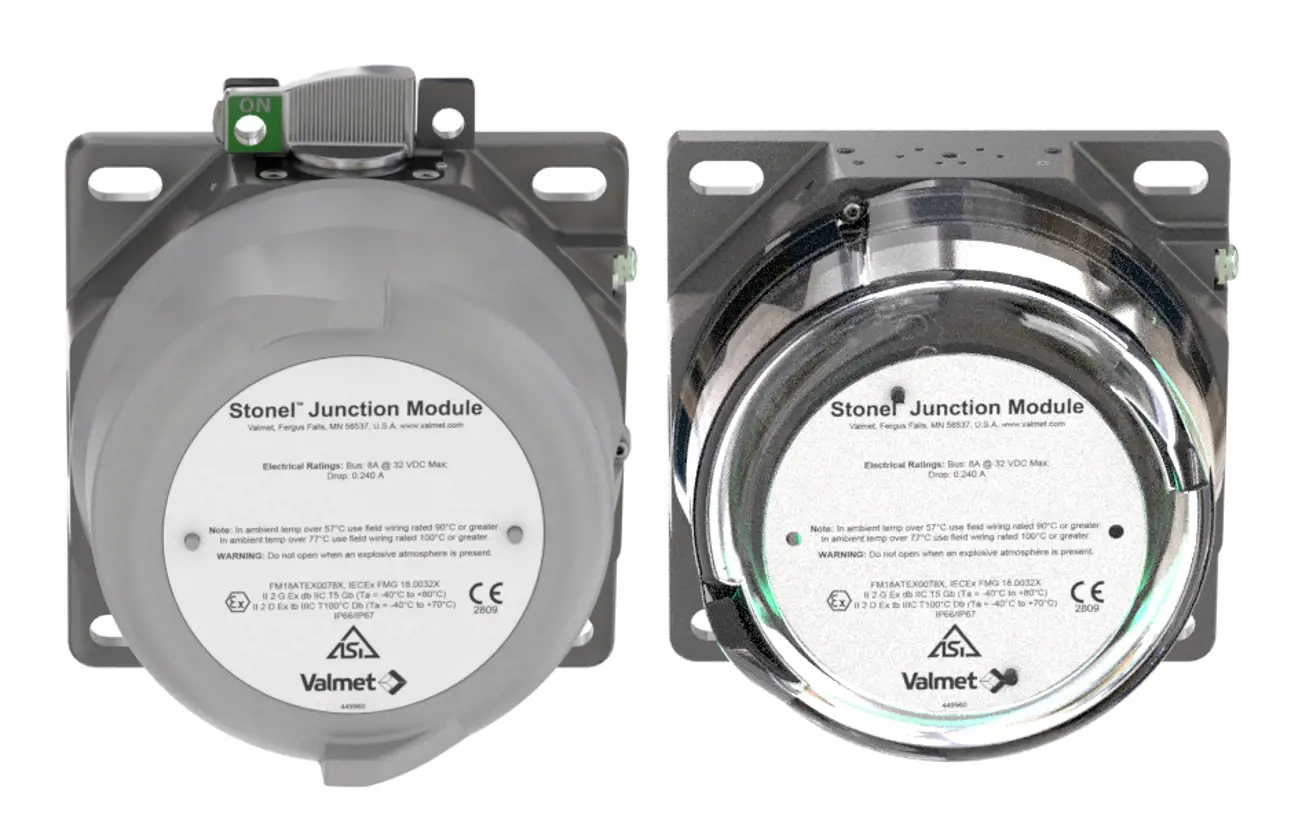

New JX drop connectors feature raised module

The new JX drop connector modules are elevated from the base of the enclosure. This allows for easier wiring to the terminals and improves LED visibility.
The new JX has many improvements over the JM including non-contact disconnect switch, larger LEDs, and worldwide hazardous location approvals.
The JX has cFMus XP and NI approvals as well as ATEX / IEXEx Exd approvals.



Specifications

Functions: Drop connectors, I/O modules, network accessories
Communication options: AS-Interface, FOUNDATION Fieldbus, Profibus, Modbus, DeviceNet
Temperature range: -40 °C ... +80 °C  / -40 °F ... +176 °F
Material: Epoxy coated aluminum optional polycarbonate cover
Flow capacity: 1.2Cv
Hazardous area approvals: Ex i, Ex d, Class I, Division 1 and Class I, Division 2

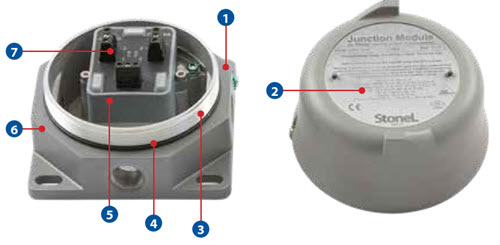

1. Rugged enclosure This enclosure is constructed of durable, marine grade anodized aluminum with two coats of epoxy. Optional clear polycarbonate cover enables observation of circuit status without opening the enclosure.
2. Hazardous approval ratings JX may be used in explosionproof and general purpose applications.
3. Quick access Screw-on cover enables convenient access to the enclosure.
4. Vapor tight and submersible Rated for IP67 and NEMA 4, 4X and 6, the JM withstands rigorous washdowns and corrosive environments.
5. Wide variety of functions Select from drop connectors, switched drop connectors, relay modules, I/O modules, power conditioners, and special module configurations.
6. Compact design JX’s size minimizes space requirements for wiring and conduit layout.
7. Convenient wiring Experience quick and secure wiring with the clearly labeled, top insertion terminal strips.

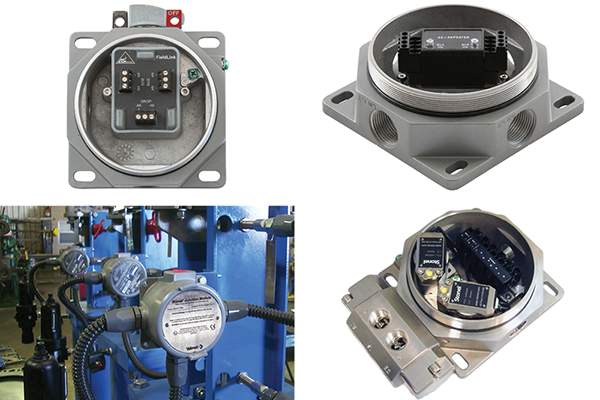

Wide variety of drop connectors, I/O modules and repeaters in the compact package

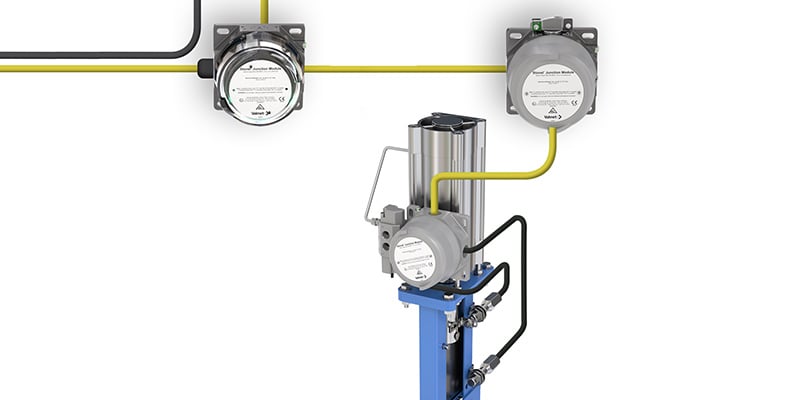

The JX features a full range of enclosed solutions for network drop connections, I/O modules, and repeaters / power conditioners.


Model selector guide: Junction Module enclosures

Go to Approvals page

1. Rugged enclosure This enclosure is constructed of durable, marine grade anodized aluminum with two coats of epoxy. Optional clear polycarbonate cover enables observation of circuit status without opening the enclosure.
2. Hazardous approval ratings JX may be used in explosionproof and general purpose applications.
3. Quick access Screw-on cover enables convenient access to the enclosure.
4. Vapor tight and submersible Rated for IP67 and NEMA 4, 4X and 6, the JM withstands rigorous washdowns and corrosive environments.
5. Wide variety of functions Select from drop connectors, switched drop connectors, relay modules, I/O modules, power conditioners, and special module configurations.
6. Compact design JX’s size minimizes space requirements for wiring and conduit layout.
7. Convenient wiring Experience quick and secure wiring with the clearly labeled, top insertion terminal strips.

Wide variety of drop connectors, I/O modules and repeaters in the compact package

The JX features a full range of enclosed solutions for network drop connections, I/O modules, and repeaters / power conditioners.


Model selector guide: Junction Module enclosures
