Drop connectors

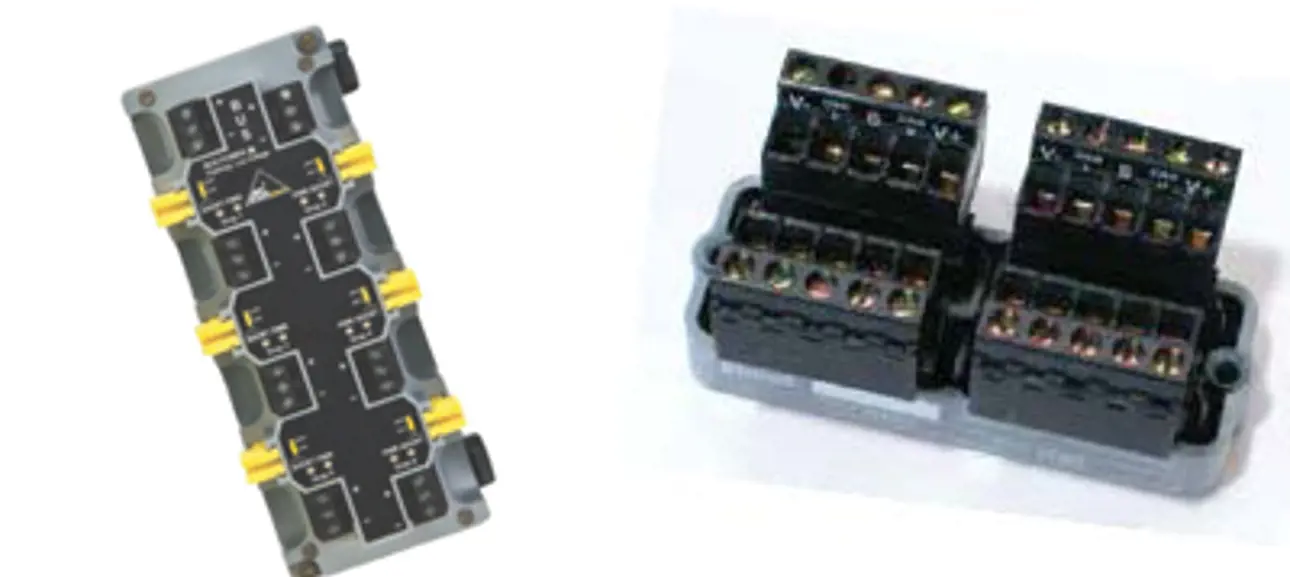

Drop connectors offer a variety of switching and protection options providing improved reliability, enhanced safety and increased network maintainability.
AS-interface
Model # |
Description |
Manual |
| DR465005A | Protected (1-1; 240mA); DIN Rail | N/A |
| DR461017A | Protected (1-1; 240mA) | N/A |
| DR465001A | Passive (1-2; No trip current); DIN Rail | N/A |
| DR461059A | Passive (1-2; No trip current) | N/A |
| DR465007A | Protected Drop Switch (1-1; 240mA); DIN Rail | N/A |
| DR461066A | Protected Drop Switch (1-1; 240mA) | N/A |
| DR465033A | Protected Drop Switch (1-1; 100mA); DIN Rail | N/A |
| DR465036A | Passive Multi-drop (1-6); DIN Rail | Download |
| DR465040A | Protected Multi-drop (1-6; 240mA); DIN Rail | Download |
| DR465044A | Switched Protected Multi-drop (1-6 240mA); DIN Rail | Download |
FOUNDATION Fieldbus
| Model # | Description | Manual |
| DR461057A | Protected (1-1; 40mA) | N/A |
| DR461110A | Passive (1-2; No trip current) | N/A |
| DR465003A | Passive (1-2; No trip current); DIN Rail | N/A |
| DR465006A | Protected (1-1; 40mA); DIN Rail | N/A |
| DR461068A | Protected Drop Switch (1-1; 40mA) | N/A |
| DR465008A | Protected Drop Switch (1-1; 40mA); DIN Rail | N/A |
| DR465037A | Passive Multi-drop (1-6); DIN Rail | Download |
| DR465041A | Protected Multi-drop (1-6; 40mA); DIN Rail | Download |
| DR465045A | Switched Protected Multi-drop (1-6; 40mA); DIN Rail | Download |
Devicenet
| Model # | Description | Manual |
| DR461053A | Passive Multi-drop (1-2) | N/A |
| DR465002A | Passive Multi-drop (1-2); DIN Rail | N/A |
| DR461117A | Power Protected Drop Switch (1-1) | N/A |
| DR465009A | Power Protected Drop Switch (1-1); DIN Rail | N/A |
| DR465038A | Passive Multi-drop (1-6); DIN Rail | Download |
| DR465042A | Power Protected Multi-drop (1-6; 240mA); DIN Rail | Download |
| DR465046A | Switched / Power Protected Multi-drop (1-6; 240mA); DIN Rail | Download |
Profibus DP
| Model # | Description | Manual |
| DR461056A | Passive Multi-drop (1-2) | N/A |
| DR465004A | Passive Multi-drop (1-2); DIN Rail | N/A |
| DR461119A | Power Protected Drop Switch (1-1) | N/A |
| DR465010A | Power Protected Drop Switch (1-1); DIN Rail | N/A |
| DR465039A | Passive Multi-drop (1-6); DIN Rail NEW | Download |
| DR465043A | Power Protected Multi-drop (1-6; 240mA); DIN Rail NEW | Download |
| DR465047A | Switched / Power Protected Multi-drop (1-6; 240mA); DIN Rail NEW | Download |
Profibus PA
| Model # | Description | Manual |
| DR461110A | Passive (1-2; No trip current) | N/A |
| DR465003A | Passive (1-2; No trip current); DIN Rail | N/A |
| DR461057A | Protected (1-1; 40mA) | N/A |
| DR465006A | Protected (1-1; 40mA); DIN Rail | N/A |
| DR461068A | Protected Drop Switch (1-1; 40mA) | N/A |
| DR465008A | Protected Drop Switch (1-1; 40mA); DIN Rail | N/A |
| DR465037A | Passive Multi-drop (1-6); DIN Rail NEW | Download |
| DR465041A | Protected Multi-drop (1-6; 40mA); DIN Rail NEW | Download |
| DR465045A | Switched Protected Multi-drop (1-6; 40mA); DIN Rail NEW | Download |
Modbus
| Model # | Description | Manual |
| DR461056A | Passive Multi-drop (1-2) | N/A |
| DR465004A | Passive Multi-drop (1-2); DIN Rail | N/A |
| DR461119A | Power Protected Drop Switch (1-1) | N/A |
| DR465010A | Power Protected Drop Switch (1-1); DIN Rail | N/A |
| DR465039A | Passive Multi-drop (1-6); DIN Rail | Download |
| DR465043A | Power Protected Multi-drop (1-6; 240mA); DIN Rail | Download |
| DR465047A | Switched / Power Protected Multi-drop (1-6; 240mA); DIN Rail | Download |
