Stonel™ Hawkeye™ HK
Nonincendive and intrinsically safe limit switch for point sensing
The solid state Stonel Hawkeye sensor is ideal for point sensing in corrosive and hazardous process environments. The standard Red/Green LEDs also speed your setup and installation by confirming power up and switch status. The Hawkeye is FM and CSA approved for nonincendive applications and intrinsically safe circuits in hazardous areas
Features
- Solid state sensing head triggers on any metal
- Rugged stainless steel body is machined from 316 stainless steel
- Stainless steel washers and fasteners
- Adaptor brackets are available in L or straight
- Conformally coated and potted circuit
- High intensity LED
- 1/2” conduit entry or mini-connector available
- Long sensing range- Sensor detects metal targets at distances up to 4-6 mm
- Rugged 316 SS housing performs well in corrosive environments
- Sensor may be temporarily submersed and electronics are shock and vibration tolerant

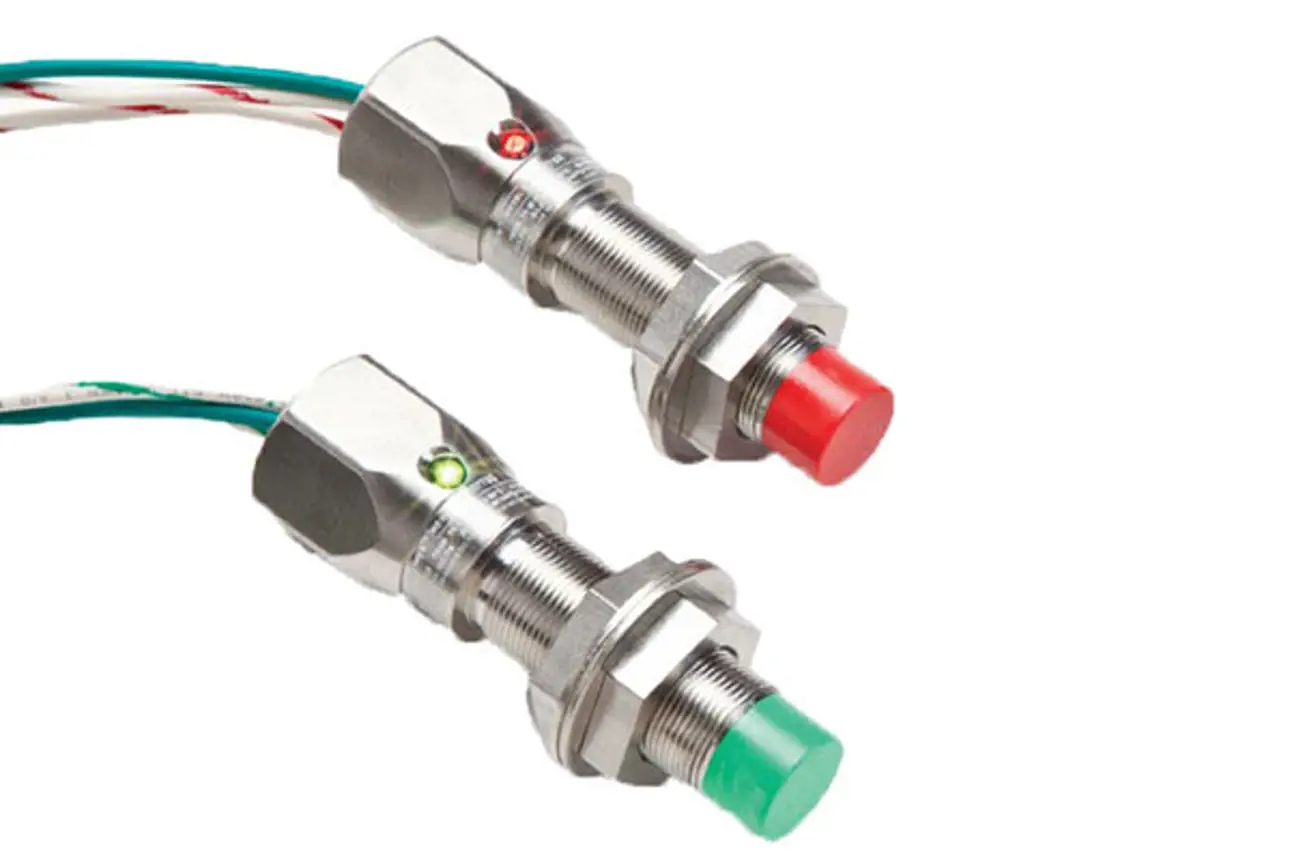

- LED brightly displays switch status Red and green LEDs may be selected to indicate open or closed
- Choose from a direct conduit entry or a plug-in mini-connector for rapid attachment
Applications
- Linear valve applications (gate & globe valves) in process environments
- Corrosive and wash down process environments
- Oil and gas
- Food and beverage
- Chemical process
- Pharmaceutical and biotech
- Agri-processing
- Mining and material handling
Specifications
|
HK30 / HK31:
|
Universal voltage switching
|
|
HK40:
|
Namur sensors (7-24 VDC)
|
|
Temperature range:
|
-40 °C … +80 °C / -40 °F … +176 °F
|
|
Material:
|
316 stainless steel with polycarbonate tip
|
|
Hazardous area approvals:
|
Ex i, Class I, Division 2 see Approvals tab
|
| Hawkeye brochure (Stonel branding) | Hawkeye brochure (Neles branding) | Installation manuals |
| HK dimensional diagram | ||

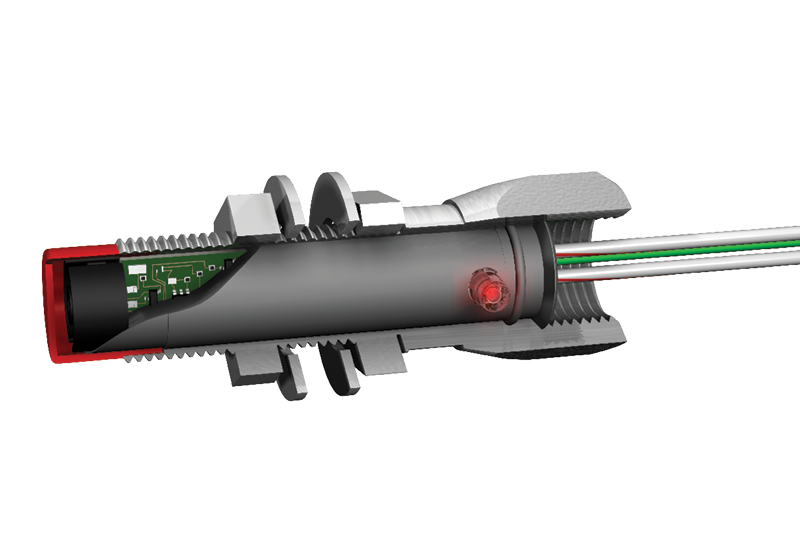

1. Sensing head triggers on any metal Inductive sensing technology detects metal targets at distances up to 4-6 mm, depending on target material.
2. Stainless steel body is rugged and corrosion proof Hawkeye sensors are machined from 316 stainless steel.
3. Stainless steel washers and fasteners secure Hawkeye permanently to mount Adaptor brackets are available in L or straight.
4. Circuit is conformally coated and potted Hawkeye sensor may be temporarily submersed and electronics are shock and vibration tolerant.
5. High intensity LED brightly displays switch status Red and green LEDs may be selected to indicate open or closed.
6. 1/2” conduit entry or mini-connector available Choose from a direct conduit entry for hazardous areas or a plug-in mini-connector for rapid attachment in general purpose environments.
Speed installation with LED indication

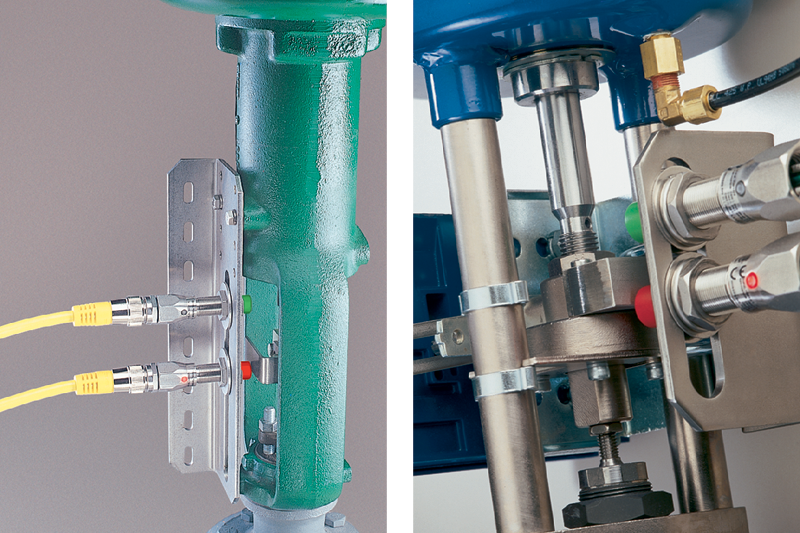

Linear applications
Each pair (red and green) of Hawkeye sensors is tuned to operate independently in either long stroke or short stroke applications down to 6mm (1/4 inch). The Hawkeye may be triggered by existing valve hardware eliminating costly magnets and triggering systems and cutting installation time.
1. Sensing head triggers on any metal Inductive sensing technology detects metal targets at distances up to 4-6 mm, depending on target material.
2. Stainless steel body is rugged and corrosion proof Hawkeye sensors are machined from 316 stainless steel.
3. Stainless steel washers and fasteners secure Hawkeye permanently to mount Adaptor brackets are available in L or straight.
4. Circuit is conformally coated and potted Hawkeye sensor may be temporarily submersed and electronics are shock and vibration tolerant.
5. High intensity LED brightly displays switch status Red and green LEDs may be selected to indicate open or closed.
6. 1/2” conduit entry or mini-connector available Choose from a direct conduit entry for hazardous areas or a plug-in mini-connector for rapid attachment in general purpose environments.
Speed installation with LED indication
Linear applications
Each pair (red and green) of Hawkeye sensors is tuned to operate independently in either long stroke or short stroke applications down to 6mm (1/4 inch). The Hawkeye may be triggered by existing valve hardware eliminating costly magnets and triggering systems and cutting installation time.
