Reducing noise, vibration and risk in pipeline operations
Noise and vibration are common engineering challenges in high-pressure fluid systems. They often occur when fluid moves at high speed, changes direction, or passes through equipment such as control valves, fittings, and pipelines. If not properly managed, these conditions can cause equipment to shake, wear out faster, require more maintenance, and become less reliable over time. Effective noise and vibration control is therefore not only important for performance, but also for protecting equipment, extending service life, improving efficiency, and supporting more sustainable operation. By reducing premature equipment damage and unplanned maintenance, operators can use resources more efficiently, reduce waste, and better manage critical infrastructure. This is especially important in industries where high-pressure systems operate continuously across large and complex networks.

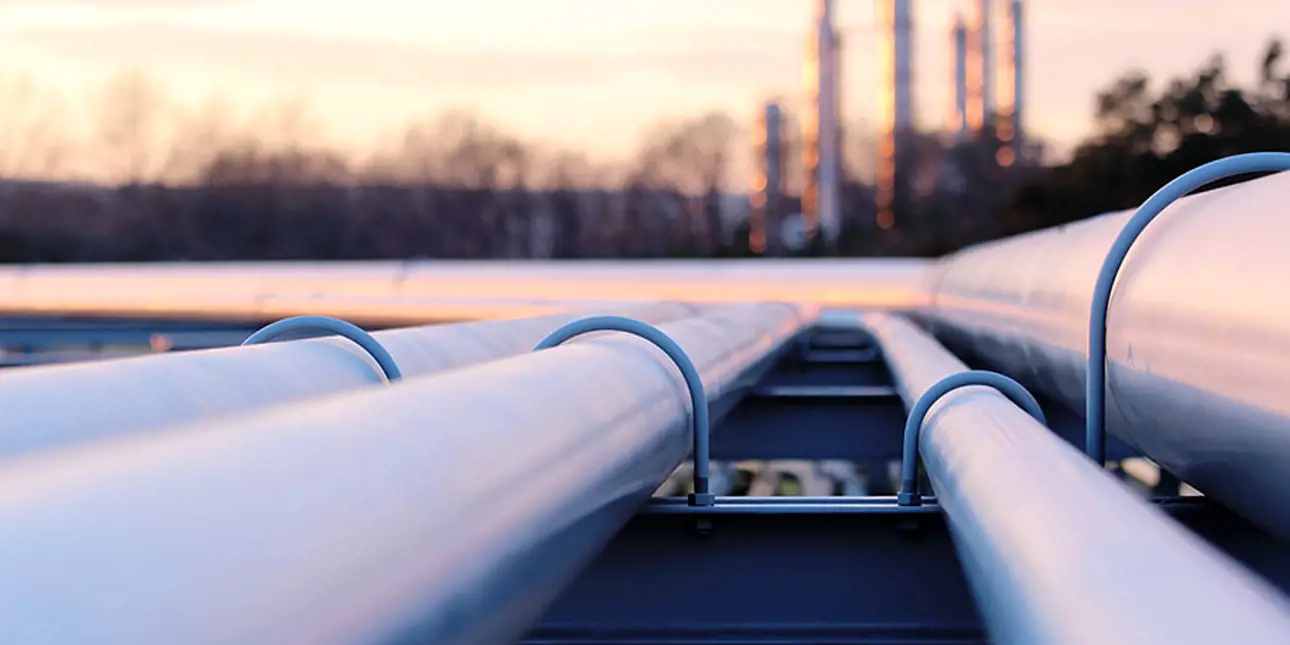

The oil and gas industry is one of the clearest examples of this type of operating environment. Pipelines, control valves, fittings, and other flow-control equipment are used across large networks to transport oil and natural gas. According to GlobalData¹, oil and natural gas move through more than 2.2 million km of transmission pipelines worldwide. In this type of infrastructure, managing noise and vibration is essential to protecting critical assets, maintaining process stability, reducing unplanned maintenance, and supporting safe, reliable, efficient, and more sustainable pipeline operations.
To effectively reduce noise and vibration risk in pipeline systems, it is important to understand the conditions that create these issues. While the source of the problem can vary depending on the application, both liquid and gas systems can experience flow conditions that affect equipment performance, reliability, and service life.
Hydrodynamic noise: When bubbles become a serious problem
In oil transportation systems, significant pressure drops across a control valve can cause the local fluid pressure to fall below its vapor pressure, leading to the formation of gas bubbles within the flowing liquid. As these bubbles are transported into higher-pressure regions, they collapse rapidly, generating localized shock waves and high-impact forces on internal valve surfaces, a phenomenon known as cavitation.
As cavitation continues, the repeated collapse of these bubbles can progressively damage valve internals and, in severe cases, affect downstream piping. One of the earliest warning signs of cavitation is the presence of unusual noise from the valve. While this noise may seem minor at first, it often indicates that cavitation is already occurring within the equipment. If left unaddressed, cavitation can shorten valve service life, increase maintenance requirements, and degrade valve performance by reducing control accuracy and increasing process variability.
Aerodynamic noise: When gas flows too fast
Gas applications present a different challenge. As gas passes through a control valve at high velocity, pressure changes, turbulence, and flow expansion can generate significant noise and vibration within the valve and piping system.
Unlike cavitation in liquids, aerodynamic noise is driven by the behavior of fast-moving gas as it travels through and exits the valve. Although noise is often the first issue noticed, vibration can create greater long-term concern. Continuous vibration places stress on the valve, piping, and nearby equipment, which can increase wear, reduce reliability, and raise maintenance costs. Proper valve sizing, pressure management, and flow control are essential for reducing these effects and supporting safe, reliable operations.
Reducing cavitation, noise and vibration
Excessive noise and vibration are more than operating concerns. They can increase maintenance costs, shorten equipment life, reduce uptime, and create safety and environmental risks. Controlling these effects is essential for reliable and sustainable pipeline operations.
Traditionally, many severe service applications have relied on linear globe valves to manage cavitation, noise, and vibration. However, pipeline operators do not always need to move away from rotary control valve technology to solve these challenges.

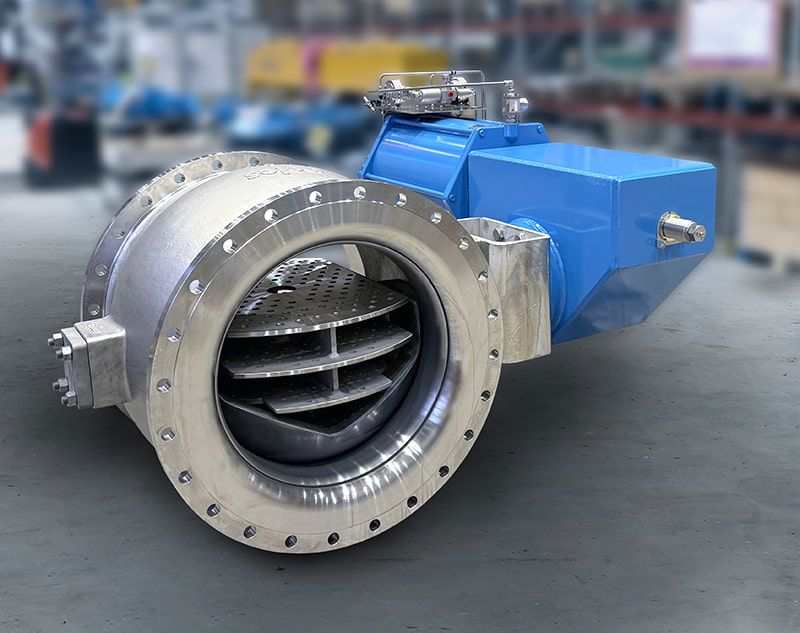

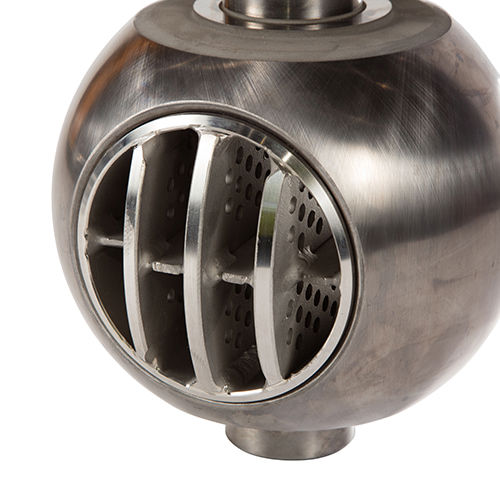

Equipped with Neles Q-Trim™, quarter-turn rotary control valves provide an effective solution for reducing cavitation, noise, and vibration while maintaining the operational advantages of rotary valve design. Drawing on decades of application experience, this technology helps address severe service conditions in five keyways:
- Staging pressure changes
The trim stages a large pressure drop by dividing it into several smaller, controlled steps. Instead of allowing the pressure to change suddenly at one point, the trim manages the pressure reduction gradually through the control valve. This helps reduce cavitation risk, lowering the noise, vibration, and wear that can damage the valve and downstream piping. The result is more reliable operation and longer equipment service life.
- Dividing the flow
This approach reduces noise by dividing the flow into multiple smaller streams through a series of smaller flow passages. By distributing the flow across many smaller openings instead of one large orifice, the trim reduces the energy released at each flow point. This helps lower turbulence intensity and pressure fluctuations, reducing noise and limiting vibration in the valve and piping system.
- Optimising pressure control
Q-Trim™ helps manage pressure reduction inside the valve by controlling how pressure is released as the valve opens and closes. Unlike conventional fixed trim designs that are often optimized for maximum flow, it maintains effective pressure control across a broader operating range. This is especially important at lower flow conditions, where pressure recovery and cavitation risk can become more challenging. By supporting more controlled pressure reduction, the design helps reduce noise, vibration, and cavitation while improving overall valve performance and reliability.
- Reducing vibration
This technology helps reduce noise and vibration at their source by controlling how flow energy is released inside the control valve. By managing and distributing the flow, it helps reduce pressure fluctuations and flow-related forces that can cause vibration in the valve, actuator, piping, and surrounding equipment. Reducing these effects helps minimize mechanical stress and wear, supporting more stable and reliable operation over time.
- Keeping the trim clean
The Q-trim™ incorporates a self-cleaning design that helps prevent debris from accumulating inside the valve during operation. As the valve opens and closes, the rotating trim helps keep critical flow passages clear, reducing the chance of deposits building up over time. This improves reliability, minimizes maintenance requirements, and helps the valve maintain consistent performance throughout its service life.
Severe control valve noise remains a challenge in many pipeline applications, but it should not be accepted as part of normal operation. With the right valve technology and application expertise, operators can address cavitation, noise, and vibration before they lead to reliability issues, equipment damage, or unplanned downtime.
Quarter-turn control valves with Neles Q-Trim™ are engineered to help operators improve performance, protect critical assets, and support safer, more efficient pipeline operation. Backed by proven engineering and decades of field experience, this solution helps reduce maintenance, extend valve life, increase process uptime, and strengthen long-term reliability.
If your operation is facing noise, cavitation, or vibration challenges, working with an experienced control valve specialist can help improve process reliability, extend equipment life, and reduce overall lifecycle costs.
