Optimizing polymerization: Focus on the product discharge
The global push for high-quality polyolefins continues to place greater demands on operational efficiency, reliability, and safety in modern polymer plants. While gas-phase polymerization processes offer the distinct advantage of easily separating reacted polymers from unreacted monomers, managing these flows in practice is highly demanding.
Navigating the challenges in polymer valves
In fluidized-bed polymerization, gaseous monomers, comonomers, and specialized catalysts react to form dry polymer resins. This newly formed resin, mixed with hydrocarbon vapors, unspent catalysts, and occasional polymer chunks, must be safely transported from the reactor to the purging and pelletization area.
This process relies on a highly coordinated network of automated valves to handle material conveyance, isolation, and gas venting. The valves installed here must perform flawlessly under some of the most aggressive conditions found in the plant.
High-cycle demands and harsh media
Valves operating within this area are pushed to their absolute mechanical limits. It is not uncommon for a polymer switching valve to endure 200,000 to 400,000 cycles annually, with cycle times of just a few seconds.
Additionally, these valves face extreme pressure differentials, intense piping vibrations, the abrasive nature of the polymer media itself, and polymer growth in internal cavities. To prevent unexpected downtime, the valve construction must be specifically engineered to resist polymer growth behind the seat pocket, keeping friction low while maintaining long-lasting, repeatable sealing and low stem emissions.
Proven flow control technologies for polymer valves
To meet these rigorous industry demands, polymer producers must match the valve technology to the specific challenges of the system. For critical discharge lines that experience heavy polymer contact, rugged, trunnion-mounted metal-seated ball valves are typically the superior choice. These valves feature a scraping seat design that continuously wipes the ball-to-seat contact area, preventing the material buildup that would eventually lead to seat leakage. For purge gas and vent lines, where contact with abrasive polymer resin still occurs but to a lesser degree, soft-seated ball valves offer a reliable and cost-effective alternative.
Additionally, limiting volatile hydrocarbon emissions is a critical sustainability target for modern polymer production. Utilizing rotary valve technology with live-loaded stem sealing ensures emission-proof performance throughout the valve’s extended lifecycle, even in high-cycle applications.
Pneumatic actuation provides the torque to cycle the assembly, and it must be carefully specified for the service. Stroking times, valve torque, safety factors, and overall cycle life between turnarounds are all factored into the recipe.
Intelligent valve automation for predictive maintenance
Today, reliable mechanical performance is only a portion of the equation. Integrating intelligent valve controllers into the product discharge system provides operators with unique, embedded diagnostic capabilities. This smart technology allows plants to transition their maintenance strategies from reactive to predictive, guaranteeing the availability of high-cycling polymer valves and preventing costly unplanned shutdowns before they occur.
The right setup for maximum profitability
Equipping your polymer system with the correct combination of purpose-built valves, high-cycle pneumatic actuators, and intelligent valve controllers from Valmet is a proven strategy for boosting plant performance. Proper valve designs not only inhibit polymer buildup and reduce maintenance needs, but also let you see your next maintenance point and plan for it, rather than reacting to failures.

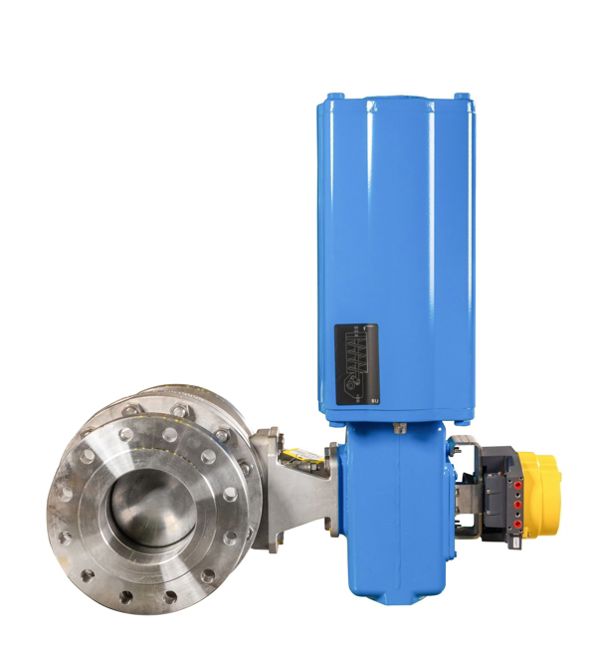

Our solution to this severe service is the ruggedized Neles™ X-Series trunnion ball valve, customized for polymer service, connected to the long-run version of our Neles™ B-Series pneumatic actuator and topped with our Neles™ SwitchGuard™ intelligent on/off valve controller.
The X-Series seat designs prevent the unreacted polymer from entering the seat pocket area, where it would expand and cause additional friction in the valve. The live-loaded packing arrangement keeps the hydrocarbon gases where they belong: in the pipe. Finally, the selected coatings provide the surface protection needed to create a long-lasting seal suitable for this service. The B series actuator and the SwitchGuard controller are designed to exceed the maintenance interval of the valve, giving you assured service until your scheduled maintenance point.
The polymer valves are the beating heart of gas-phase polyolefin production. By mastering flow control within this system using durable, field-proven valve technologies and intelligent diagnostics, producers can ensure safer, more efficient, and highly profitable operations for the long term.
