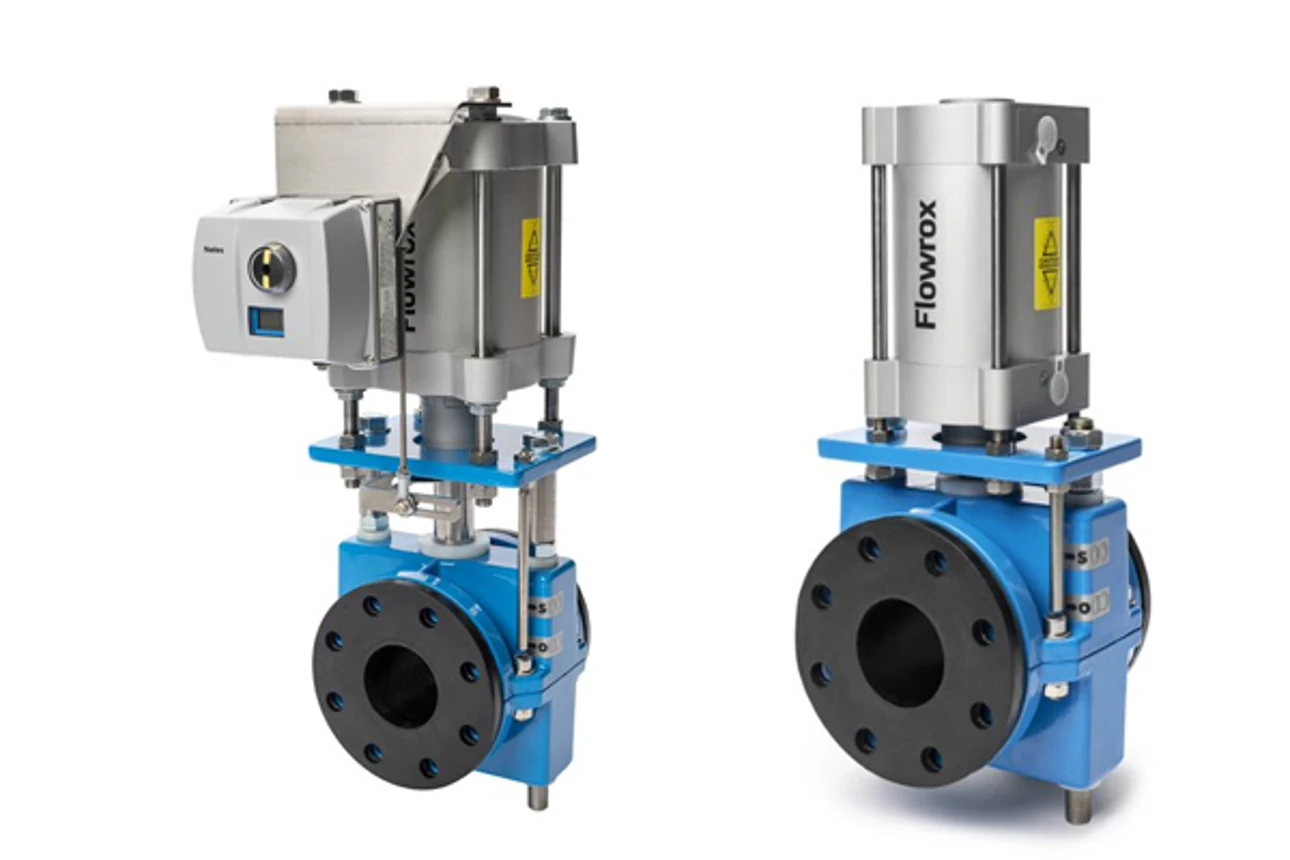

Flowrox™ heavy duty pinch valves

Pinch valves for shut-off and control applications

Flowrox PV, PVE and PVE/S heavy duty pinch valves are designed for shut off and control applications involving abrasive or corrosive slurries, powders or granular substances. In the open position, the valve is full bore with no flow restrictions. During closing, two pinch bars squeeze the valve sleeve shut on the center line. Bubble tight shut-off is provided even if solids have built up on the sleeve wall.

Improved process efficiency

100% tight shut-off even if solids have built upon the sleeve wall. When compressed, any crystallized particles flake off the sleeve surface.

Improved customers' productivity

Full bore: Ensured free flow of the medium and less pumping energy is required.

Ease of maintenance

Only the sleeve is in contact with the medium and is the only replaceable part. Can be easily changed on site.

Accurate control

Improved controllability with conical sleeve results in linear control curve.

Extended service intervals

High corrosion resistance and flexible sleeve.

Industry benchmark in pinch valves

Flowrox industrial valves are benchmark in heavy duty industry and most demanding conditions. Flowrox heavy duty pinch valve is made to last and is ideal where shut-off and control applications involve abrasive or corrosive slurries, powders or coarse substances. The rubber sleeve is the only wearing part which significantly reduces maintenance costs and extends service intervals. Advanced flow control solutions paired with superior valve and elastomer technology meet even the most demanding customer specifications.

We provide tailor-made flow control solutions precisely in accordance with the customer specification.

Typical payback time 15 months in on/off applications
Save 2/3 on spare part costs
Reduce downtime costs by 70%
We offer comprehensive sizing and selection service
Low cost maintenance and long service intervals – the inside sleeve is the only replaceable part

Designed for demanding control applications

Flowrox control valves are designed for demanding control applications in which conventional valves encounter problems with wear due to increased turbulence. Controllability can be further improved, i.e. linearized and widened, with conical sleeves and smart positioners.

Each valve can be sized and optimized for the optimal control range, to limit wear and velocity and also to prevent cavitation from occurring in the control valve. Our control valve sizing program is available to ease your work. Flowrox control valve sizing is based on international IEC60534 standard (harmonized with ANSI/ISA S75).

Flowrox extra thick polyurethane sleeve

Special for harshest control applications

For high-wear control valve applications, we can also provide Flowrox extra thick polyurethane (PU) sleeve. It is engineered for extreme sliding abrasion, low angular and low velocity impact conditions.

Reduced total cost of ownership
Longer lifetime
Fast, easy and cost-efficient maintenance

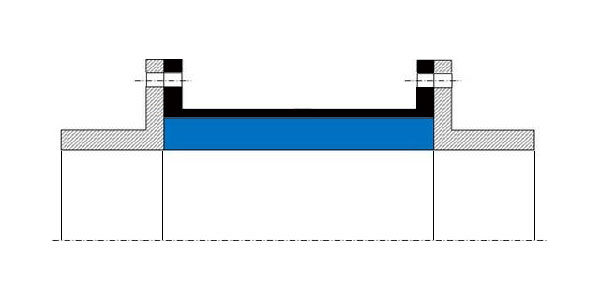

Pinch valves, extra thick polyurethane sleeve - Flowrox

Only part in contact with the abrasive slurry is the abrasion-resistant polyurethane inner lining of the sleeve.

Technical specifications

Series:	PV	PVE	PVE/S
Construction:	Open body	Enclosed body	Enclosed/Sealed body
Size range:	80 - 600 mm / 3 - 24 in	25 - 1000 mm / 1 - 40 in	25 - 800 mm / 1 - 32 in
Pressure range:	0 - 25 bar / 0 - 362 psi	0 - 100 bar / 0 - 1450 psi	0 - 100 bar / 0 - 1450 psi
Temperature range:	-25 - 50 °C / -32 - 122 °F	-25 - 80 °C / -32 - 176 °F	-25 - 80 °C / -32 - 176 °F

Downloads

Related products and services

Flowrox™ PVG and PVEG pinch valves

Flowrox™ slurry knife gate valves

Spare parts for Flowrox™ valves

Insights

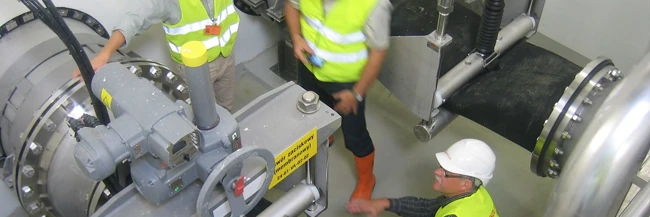

Flowrox valves control sludge flow in a wastewater plant without problems

Aug 26, 2022

Flowrox pinch valves PV 500 E01 are successfully controlling the sludge flow in a Polish wastewater plant. Twenty electrically actuated valves were delivered in 2011 to Poland through Danish engineering company Krüger A/S and local Valmet Flow Control channel partner.

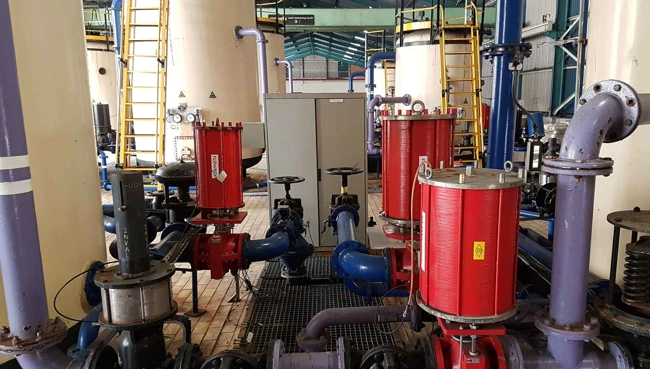

Outstanding performance and zero maintenance with reliable Flowrox pinch valves

Nov 30, 2021

Reliable Flowrox™ high performance PVE pinch valves proved to be a perfect solution for a power generation water treatment plant located in Mpumalanga, South Africa. Six years after the installation of PVE pinch valves in power generation plant no maintenance has been required.

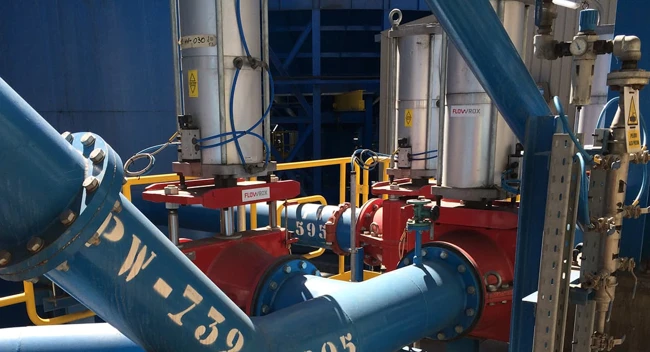

Flowrox control and shut-off pinch valves succeed in ore and water treatment plants in a Spanish mine

Mar 21, 2022

After seven years of implementation of Flowrox™ pinch valves in a concentration plant, customer remains satisfied with the cost savings combined with reliable operation and easy valve maintenance. All 330 pinch valves were installed in an extension of their ore and water treatment plant. The project basically consisted of duplicating the size of an existing plant.
