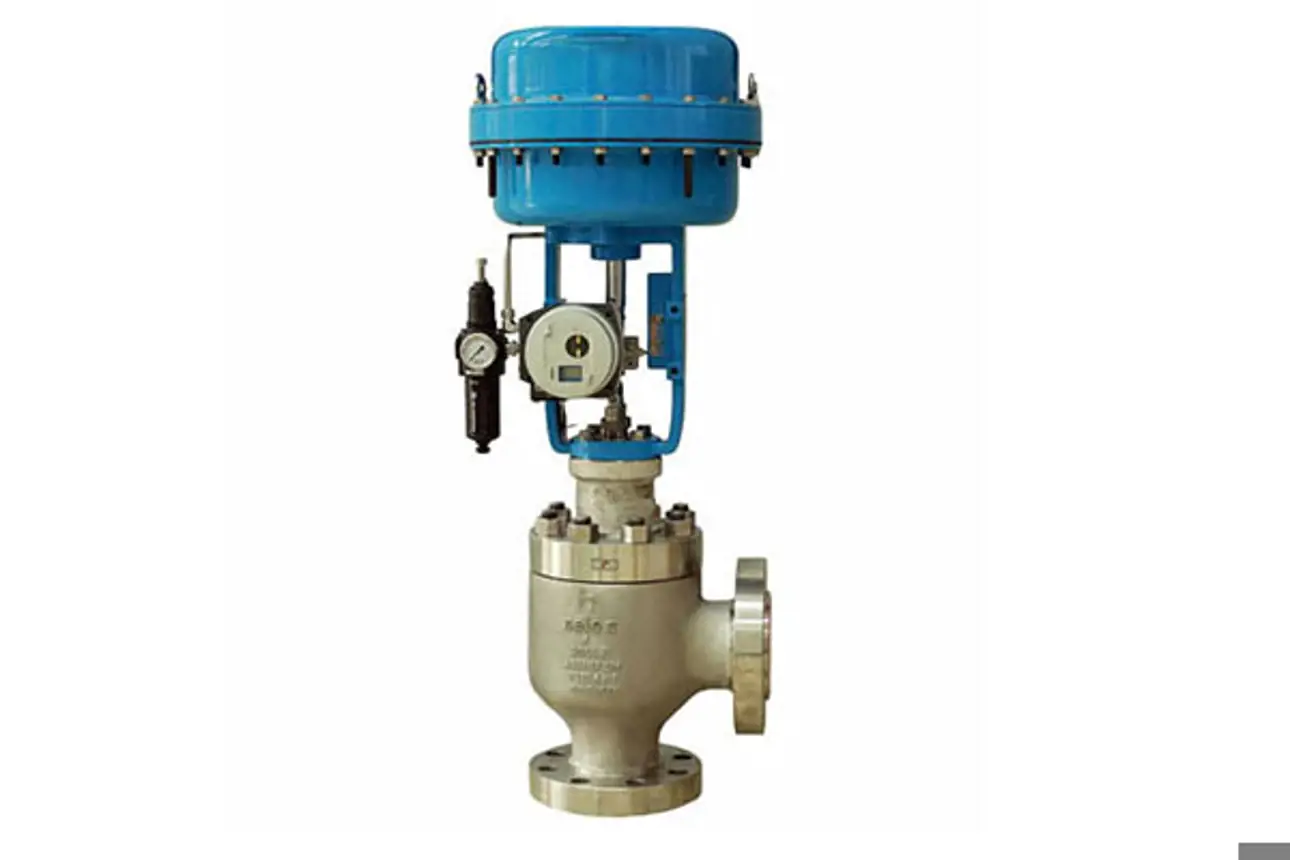

Neles™ Omega™ angle valve, series AM

Superior control performance and high reliability for severe service applications where noise or cavitation need to be eliminated.

Neles series AM globe valves provide superior control performance and high reliability in demanding applications where noise or cavitation need to be eliminated. Standard units are equipped with Neles diaphragm or piston actuators and Neles valve controllers for precise flow control, extended operation life and performance monitoring online.

Easy maintenance - valve can stay in the pipeline while replacing parts

Low cost of ownership and minimized maintenance need

Stable process and noise control

Low emissions according to ISO 15848

Features

One piece body to minimize the leak paths
Angle body pattern for angle pipeline installations - especially suitable for severe applications with high pressure drop and erosive fluid
Top-entry construction and quick-change trim for easy maintenance
Rugged top-guided or heavy-duty cage-guided trim constructions and hardened trim surfaces for extended lifetime as default
Omega multi-stage disk stack trim technology for eliminating noise or cavitation in high pressure drop applications
Wide variety of trim capacities, characteristics and trim stages to optimize valve performance
Wide material selection available for different applications
Flanged and welding-end body options
Low emissions according to ISO 15848, bellows packing available
NACE material options
SIL 3 certified
Special cleaning optional for oxygen, cryogenic etc. service

Applications

Oil and gas production
Petrochemicals
Chemicals
Power plants
Pulp & Paper
Industrial gas
LNG

Specifications

Series	AM
Design	Unbalanced, top-guided / balanced, cage-guided
Size range	DN 25 - 1200 / 1" - 48"
Pressure classes	ASME 150 – 2500 / PN10 – 320
Temperature range	-196 °C … +593 °C
Tightness	ANSI/FCI 70-2 class IV / V (metal seat), V (soft seat, balanced), VI (soft seat, unbalanced)

Downloads

Related products

Segment valves

Neles™ segment valves are economical high-performance control valves designed for liquid, gas, vapor and slurry control applications - especially those with high capacity and wide rangeability requirements. The Neles™ R-series offers light weight, low torque control valves from 1" low-capacity models up to 32".

Eccentric rotary plug valves, series FC and FG

Neles™ Finetrol™ eccentric rotary plug valve is designed for liquid, gas, vapor and slurry control in general and demanding applications. Neles Finetrol is certified to SIL 3. Excellent control performance and capability to handle impure fluids makes Finetrol well suited in refining and petrochemical industry applications.

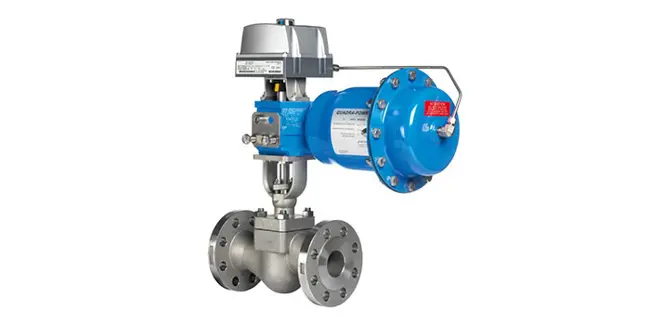

Neles™ RotaryGlobe™ control valve, series ZX
