Valmet headbox family comprises an optimal selection of paper machine headboxes to meet various production requirements in paper and board making. New innovative headbox solutions, combined with the precise dimensioning know-how of today, raise the performance of your paper machine to a totally new level. Valmet headbox family provides excellent end-product quality, higher productivity, lower life cycle costs and a secure investment.
Discover Valmet headbox selection
Get to know our OptiFlo headbox product family. Click on the link below to read and find out more on our different headbox solutions.
If you wish to get further information like technical specifications, need a quotation, or wish to discuss different solutions, fill in the contact form and our experts will contact you shortly.Contact our headbox experts
The headbox plays a key role in producing high-quality paper and board products. Designed to produce perfect visual appearence with good profiles accross the entire machine, Valmet headboxes deliver improved paper quality and increased machine productivity. Production and quality targets can be reached more quickly after start-up - and with fewer web breaks and less broke. This means high machine efficiency and a rapid return on your investment.
The keywords of a properly functioning headbox are uniformity and profiles. The hydraulic performance of the headbox mainly determines the properties of the paper. The headbox controls the web’s profiles and helps to establish paper properties such as formation.
Qualities of a great headbox include distributing stock uniformly across the forming section, without disturbances, and imparting sufficient turbulence to the flow to keep the fibers dispersed. Equally important factors are that the headbox is easy and simple to operate and remain clean during operation.
Valmet headbox family offers all application methods and all paper machine sizes available - Fourdrinier, layering Fourdrinier, Gap, and layering Gap headboxes as well as the new innovative aqua layering technology that makes it possible to produce a two-layer sheet with very good layer coverage using only one headbox and forming unit.

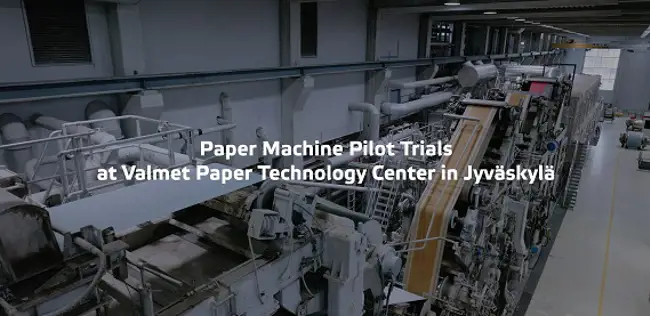

Valmet Paper Technology Center provides the world's most comprehensive offering of testing and piloting services to paper and board manufacturers worldwide. We offer the opportunity to experiment and develop paper and board products and processes without having to put your own production on hold. This is a very cost-efficient compared to expensive tests in your own production.
Our pilot facilities have the entire paper machine process covered providing customers with excellent service and reliable results to support investment decisions. Your R&D team is warmly welcome to join our experts to develop the optimal configuration to support your papermaking demands also in the future.
Get in touch with our pilot trial experts to discuss how you could benefit from our pilot trial services.Contact our pilot trial experts
Learn more about OptiFlo headboxes

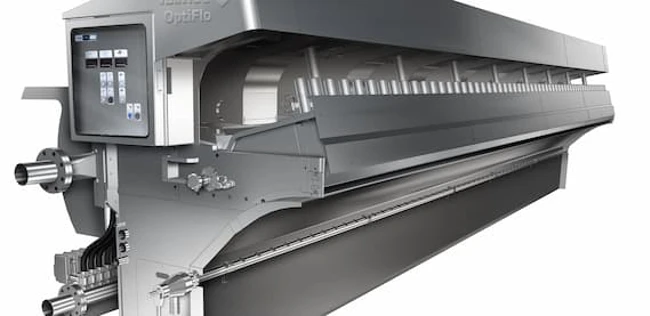

The OptiFlo headbox family introduces a new level of performance, with modular construction developed to meet the increasing productivity and quality requirements of high-quality paper and board machines. The OptiFlo headbox family combines proven technology with new ideas.
OptiFlo's advanced design simplifies later upgrades, making possible to handle changing production needs or introduce new control technology with minimal disruption to production. The headbox ensures optimum utilization, even if production or quality targets change.

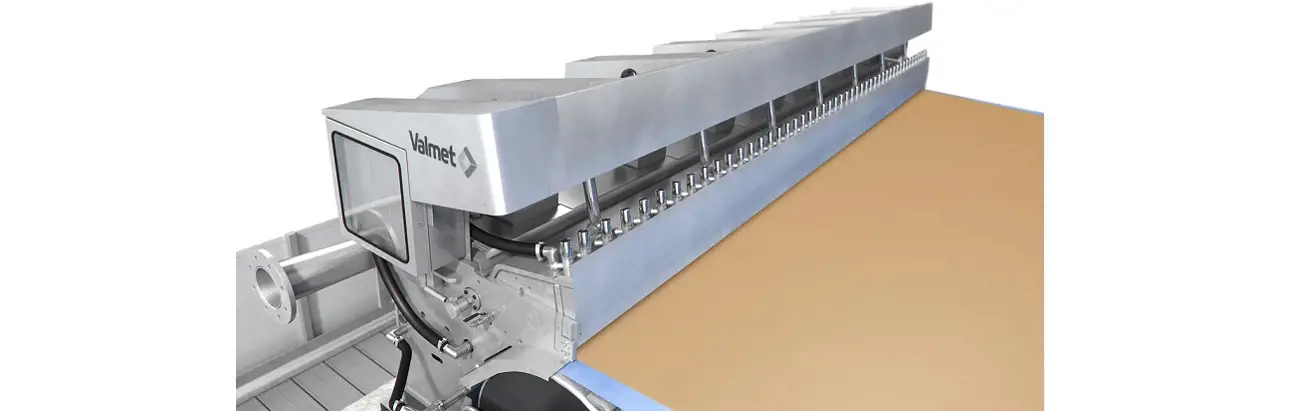

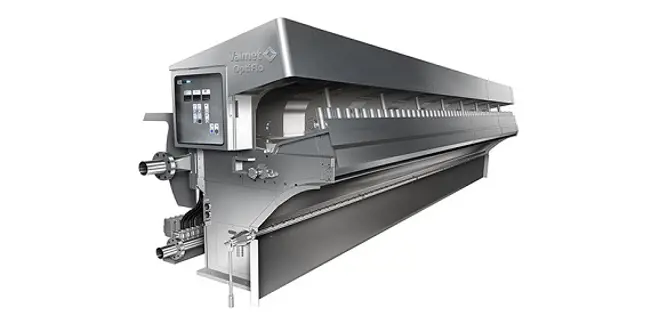

OptiFlo Fourdrinier headbox
The innovative design of OptiFlo Fourdrinier headbox provides the greatest floc breaking ability and flattest profiles available on the market. That ensures that the paper and board products you make is of optimal quality. All the features of the headbox have been carefully designed to increase machine productivity, while keeping daily operating costs in control.

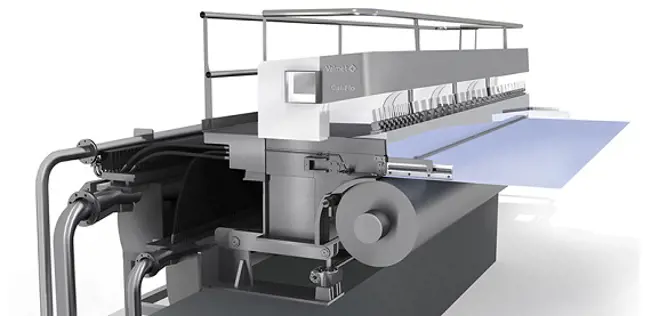

OptiFlo Layering Fourdrinier headbox
OptiFlo Layering Fourdrinier tackles the board makers’ challenges in combining lower basis weights, faster speeds and higher ash contents resulting from the increased use of recycled fiber. This provides excellent layer coverage, considerably lower residual variation in basis weight as well as an excellent formation.

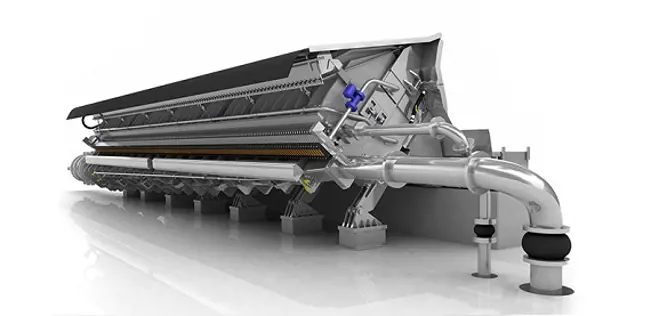

OptiFlo Gap headbox
The key elements of the OptiFlo Gap headbox are its redesigned headbox turbulence generator and slice channel. These allow a consistent and disturbance-free slice jet. The objective of the OptiFlo Gap headbox is to achieve optimal fiber suspension fluidization and to maintain optimal fluidization without disturbance across the forming section.

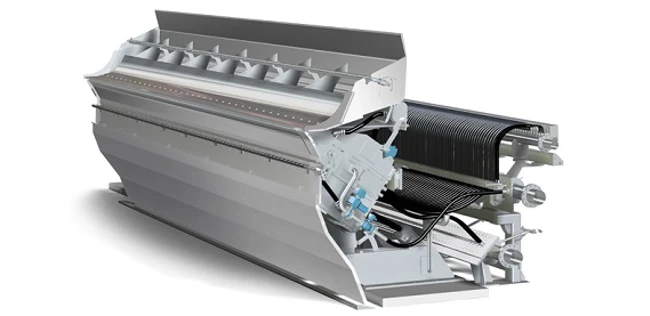

OptiFlo Layering Gap headbox
The two-layer OptiFlo Gap headbox can produce a two-ply sheet using a gap forming unit. In two-layer headbox applications, it is very important to guarantee layer coverage. All hydraulic components of the headbox have been designed to minimize slice jet and board sheet disturbances.

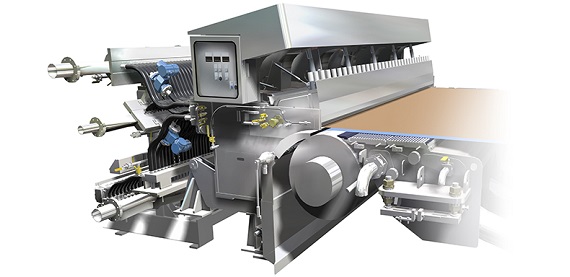

Aqua layering technology
This technology uses a thin water layer as a headbox wedge to stabilize layers while layers of stratified paper are being joined together. It prevents mixing of stock layers and also enables feeding of functional additives between the stock layers. Combine with OptiFlo Layering Fourdrinier and OptiFlo Layering Gap headboxes.
Headbox rebuild for Ahlström Munksjö’s Dettingen
Aug 12, 2021
The customers of Ahlström Munksjö’s Dettingen mill in Germany set high expectations of the quality and printability of decor paper used in furniture. The mill’s recent wet end rebuild has further improved paper strength, as well as decreased the grammage deviation.

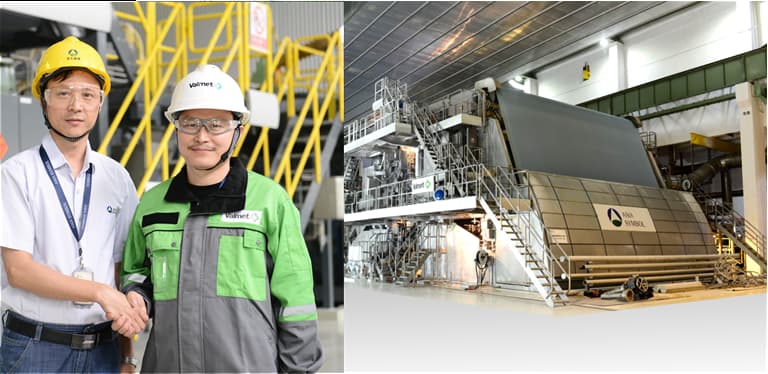

Excellent quality fine paper produced with Asia Symbol Xinhui PM12
Jan 4, 2019
Asia Symbol Paper's two Valmet paper machines, PM11 and PM12 set a reference quality level for the global and Asian markets. Xinhui PM12 is equipped with the latest technology like shoe and blade forming technology to create a competitive edge for Asia Symbol in the future.
The world's largest and fastest woodfree-producing paper machine
Jul 25, 2018
The world's largest and fastest woodfree-producing paper machine was started-up at the Zhanjiang Chenming mill in China. The recorded speed was 1,808 m/min. During a 24-hour run, the 11.15-meter-wide PM 1 produced high quality printing paper at a basis weight of 70 g/m2.
Finding a better way forward with aqua layering technology
Oct 27, 2014
The new innovatiove OptiFlo layering headbox at Dongil Wolsan PM1 enables feeding starch between the layers. This increases ignificantly the strenght properties of the end product while providing cost savings as 30% less starch is needed.
The world is changing fast; the consumption of newsprint and printing paper is decreasing and the consumption of containerboards or cartonboards are increasing. An old paper machine can be updated with a grade conversion rebuild to produce more profitable products. Turn a new page for your paper machine with the help from Valmet.Discover more
Rebuilding a paper or board machine can improve the competitiveness of your business and your processes. But where do you start? Download our e-book to learn how to develop a winning rebuild concept, how to minimize rebuild related risks, and how to ensure smooth ramp up to full production.Download e-book
Headbox sheets used in the headbox are vital for producing a uniform jet flow from the headbox slice to the forming section. The sheets significantly impact end-product quality features such as formation, CD basis weight profiles, thickness and sheet edges, all of which affect the overall paper machine productivity.
