Perini Sincro 750A

2006

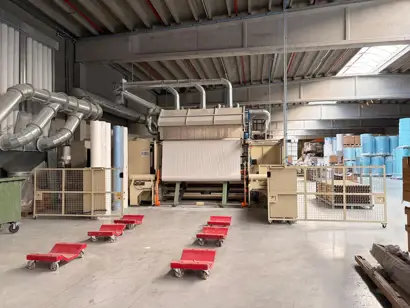

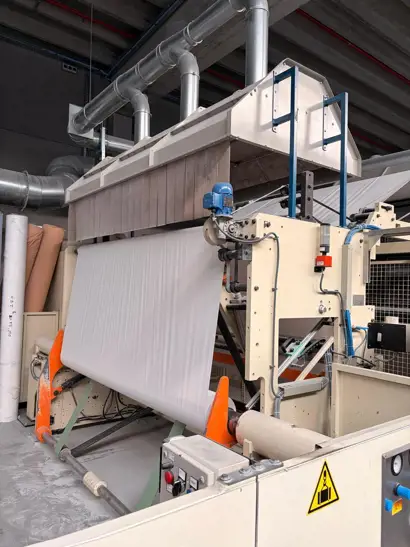

• 350B Unwinder
• 750A Rewinder with integrated DESL unit and ply bonding unit
• 571D Tail sealer
• 534D Horizontal accumulator

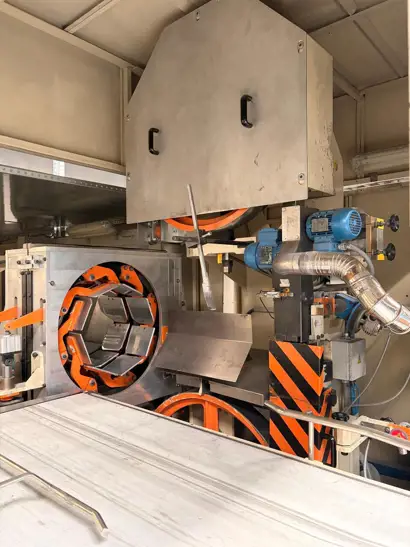

• 142D Logsaw

Line:

• PLC Siemens S7-300, HMI Siemens TP270
• Single main DC motor for both unwinder and rewinder
• Rewinder cycle Robox with Unidrive SP
• Safety Pilz electromechanical devices

 Logsaw:

• PLC and axis controller GE Fanuc, HMI T-Line
• Main DC motor for blade speed control
• Unidrive SP for servomotors
• Safety Pilz electromechanical devices

1850 – 2750 mm

Included

• Core diameter: 76 mm
• Reel weight: 1200 Kg
• Roll diameterer: 1500 mm
• Reel and break detection: Yes
• Chucks and adjustments:Hydraulically controlled

Perforation length

• 4 blades: 90–130 mm
• 2 blades: 180–260 mm
• 1 blade: 360–520 mm
• Products without perforation

Minimum–maximum winding length: 9–4,000 m, adjustable sheet by sheet

Core diameter: 30–95 mm, with motorized adjustment

Core gluing: 9 glue guns

Winding diameter: 85–450 mm

Winding speed

• 450 m/min with DESL unit inactive
• 300 m/min with DESL unit active

Steel roll diameter: 265 mm

Roll approach control: Mechanical

Laminating unit: Doctor blade chamber

Exit-side bypass: Yes

Log diameter: 110–450 mm

Maximum log diameter: 330 mm

Number of logs: 4

Log diameter range: 120–450 mm

Roll discharge system: Conveyor

Cutting speed: 11–35 cuts/min, depending on the cutting length

Blade sharpening unit: Motorized

Emery dust extraction unit: Included

Line:

• SPT158 Robox replacement
• SPT101 HMI replacement
• SPT098 Safety upgrade
• Main motor replacement
• Unidrive replacement

 Logsaw:

• SPT142 New electrical cabinet
