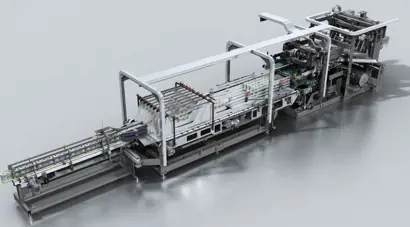

Casmatic CMB270

Designed to reach production speeds up to 27 bundles per minute, Casmatic CMB270 is able to bundle any type of format with its in-line infeed configuration. This model is equipped with a new patented system called revolver, which allows to significantly improve the production speed for bundles with up-ended single rolls and packages. In addition, this new bundler includes several other advantages and features such as 60% less energy consumption compared to previous models, a new layer separator designed to stack specific bundles, a bag quality booster system to improve bundle tightness and guided maintenance procedures saved in the HMI.

Performance

The machine is capable of producing up to 27 bundles per minute with the highest quality and reliability expected from Casmatic brand.

Energy saving

60% less energy and air consumption thanks to the new longitudinal sealing

Versatility

This model can produce a significant variety of bundle configurations, with specific technology for single rolls and upended packages. The in-line infeed allows compact footprint, increased automation and faster format changeover.

Main characteristics

  • Maximum production speed: Up to 27 bundles/minute
  • Bundle minimum dimensions:
    • Width 330 mm
    • Height 180 mm
    • Length 180 mm
  • Bundle maximum dimensions:
    • Width 850 mm
    • Height 500 mm
    • Length 900 mm

*Please note that these are standard characteristics of the line. To receive additional information, contact us, clicking on "Request a free consultation"

*Please note that these are standard characteristics of the line. To receive additional information, contact us, clicking on "Request a free consultation"
