Valmet introduces new electric actuator with mechanical spring back-up to the Valvcon product offering
Valmet announces the introduction of a new electric actuator, the Valvcon™ Quarterback™ QB-series. It features an integrated mechanical spring back-up for quarter-turn applications and is designed to drive valves and dampers to a predefined fail position after a loss of external power, helping protect the process and equipment.
Integrated mechanical spring back-up for defined fail position
In many quarter-turn applications, spring-return actuator solutions can be large and heavy and may limit configuration choices after installation. The Valvcon QB-series provides a more compact option and supports common installation needs through multi-voltage input power, on/off or position control, and a field-reversible spring-release direction.
The QB-series accepts 115 VAC, 230 VAC (50/60 Hz, 1PH), and 24 VDC power as standard. It can be configured for on/off control or modulating operation, depending on the application.

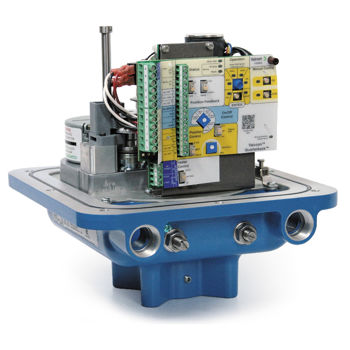

The mechanical spring back-up uses internal spring pack(s) that release automatically on power loss to drive the actuator to the selected fail position. The spring pack(s) can be reversed to select the fail position in the field.
Dean Lawrence, Product Manager for the Valvcon brand, said: “The Valvcon Quarterback offers multiple voltage and control capabilities and the ability to configure the fail direction in the field, in a compact design that is lighter than comparable products. It’s truly a game changer providing easier installation and more flexibility for customer applications.”
Stocking requirements can be reduced because the same unit can be used for AC and DC applications and reconfigured in the field for either fail clockwise or fail counterclockwise. Universal control inputs also support installation for on/off or position control applications.
Mark Buzzell, Sales Director for valve controls and actuators, added: “Our customers are genuinely excited about the addition of a mechanical spring back-up option. The Valvcon QB delivers the same trusted reliability and versatility they’ve relied on in the ADC series for years, now with an added layer of failsafe assurance.”

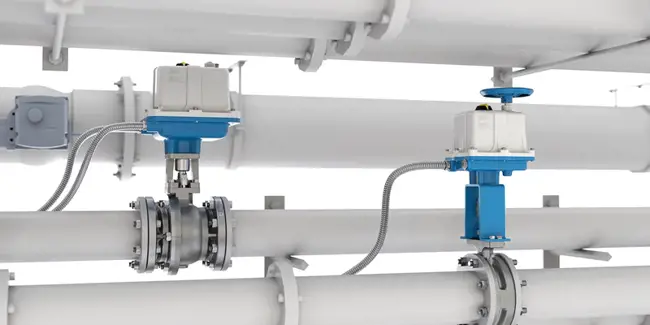

Valmet designs and supplies electronically controlled electric actuators for valves and dampers. The Valvcon Quarterback QB-series extends the electric actuator offering with a mechanical spring back-up option for quarter-turn applications that require a defined fail position after power loss.
For further information, please contact:
Dean Lawrence, Valvcon Product Manager, Flow Control, Valmet, tel. +1 (508) 595-5020
