RoboDestacker

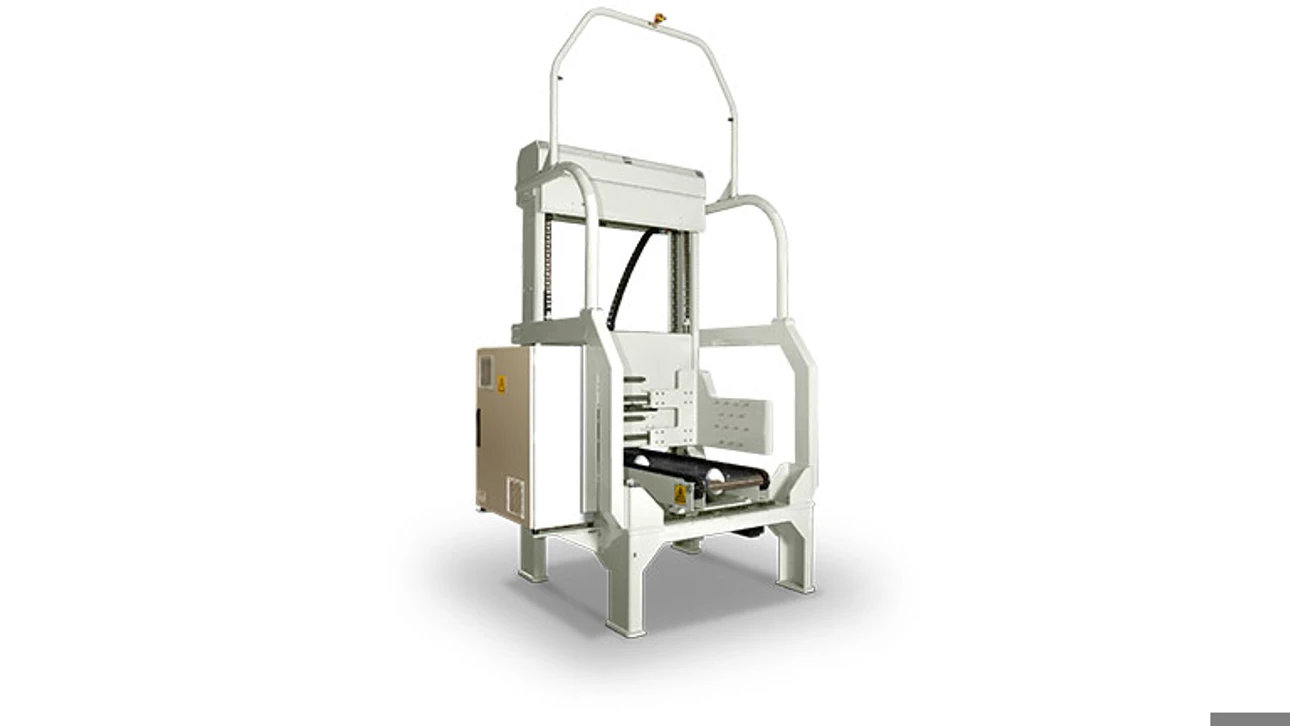

RoboDestacker is a fully automatic machine for efficient destacking of pulp bale units down to single bales after manual dewiring.

Automatic destacking to single bales aRoboDestackerfter bale unit dewiring

This high-capacity, 100 % electric powered solution, available in stationary or movable versions, delivers destacking rates of up to 285 bales/h.

High capacity and flexibility

In a semi-automatic or automatic pulp receiving line, bales units are automatically destacked down to single bales by RoboDestacker after manual unit dewiring. The machine can handle any bale quality and bale unit size. Different bale unit sizes can be pre-programmed into RoboDestacker and are then automatically identified and processed when fed into the machine. This high-capacity solution offers smooth, efficient operation at rates of up to 285 bales/h.

No pneumatics or hydraulics

The machine is powered by a 100% electric system, eliminating the need for pneumatic connections or an external hydraulic power unit. This factor keeps both initial investment costs and life cycle costs at low levels. Stationary or movable versions RoboDestacker is available in two versions to suit your specific needs – stationary (DSA-F) or movable (DSA-M). The movable variant, which runs on rails, is used in automatic recipe handling applications.

Easy to install, operate and service

Automatic destacking of bale units can be planned into a new line or easily retrofitted into an existing pulp receiving line. The machine is delivered as a ready-to-use unit designed for fast installation and start up. Efficient everyday operation is ensured by the superior control system, featuring PLC control equipment, that is operated and monitored via a touch-screen with an easy-to-use graphic interface. RoboDestacker is service-friendly – every service point can be reached from floor level and key mechanisms are located under easily removable covers.

Key benefits

  • High capacity
  • 100% electric system
  • Stationary or movable versions
  • Easy to install, operate and service
